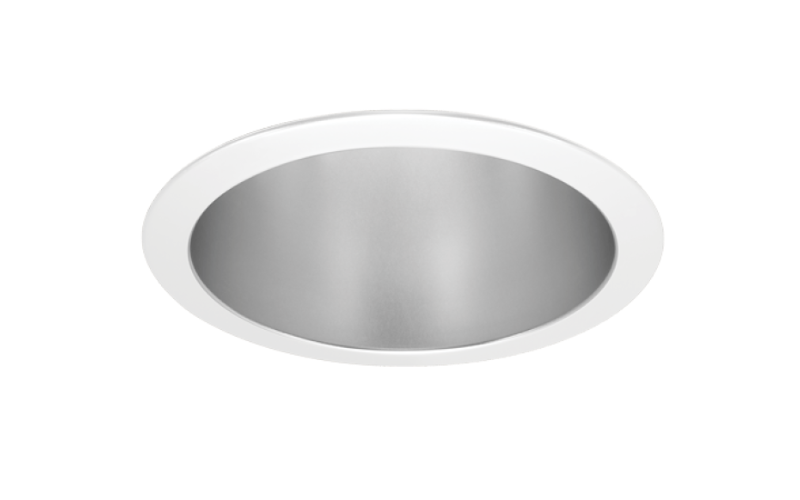

FLC6D. ID+ 6'' LED DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Self-flanged Clear Diffuse reflector cone features superior brightness control.
50 degree cutoff to light source and its image.
Shallow housing.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
Selection of dimming drivers available.
Application

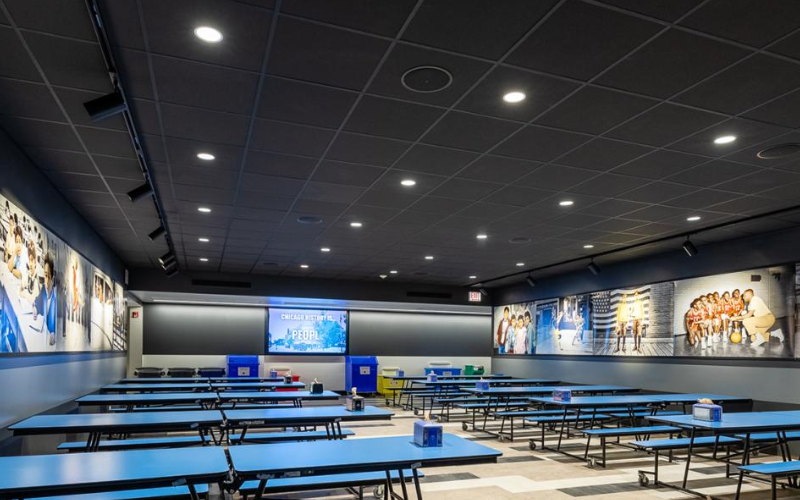

General downlighting
Self-flanged Clear Diffuse reflector cone features superior brightness control.
50 degree cutoff to light source and its image.
Shallow housing.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
Selection of dimming drivers available.
Application
General downlighting
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.44"L: 7.44"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)11 W17 W21 W29 W36 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoE120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance63000 h
- CertificatesUL/CUL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth6.29 ''6.53 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLC6D
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
