Focal Point (Legrand)
FLCS33. ID+ 3.5'' x 3.5'' LED ADJUSTABLE.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

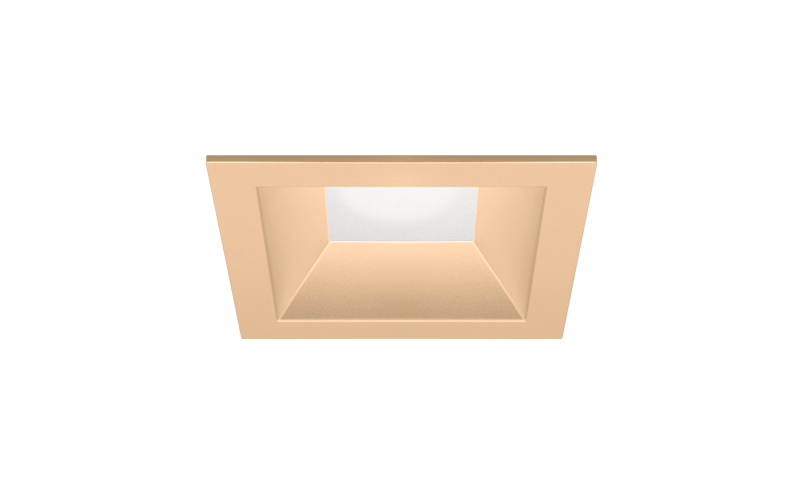

3.5" x 3.5" aperture square LED adjustable accent.
Shallow 3.12" housing.
Tool-less adjustment for 35° vertical tilt and 362° rotation of the light module with locking mechanism.
Field-changeable optics.
Shrouds for 10°-20° and 20°-35° tilt spot optic with no lens ensure a pleasing visual appearance, lights on or off.
Available with The Naturals, a series of nature-inspired finishes.
Die-cast, overlap trim.
Die-cast heat sink designed for maximum thermal dissipation.
Performance
CBCP up to 9,609 Cd for 20° Spot.
Beam spreads from 20° to 77° and two linear spreads 58° x 32° & 32° x 58°.
Solite lens supports visual comfort.
Standard lumen outputs from 500 to 1500.
80, 90, 97 CRI.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application

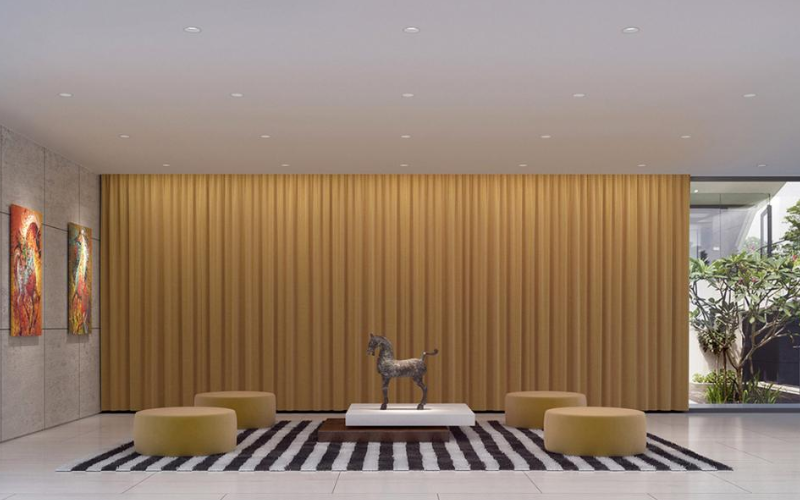

Designed for highlighting artwork and architectural features in residential, commercial, retail, hospitality, and museum applications.
High lumen outputs support high ceiling applications.
Ideal for shallow or restricted plenums and sloped ceilings.
3.5" x 3.5" aperture square LED adjustable accent.
Shallow 3.12" housing.
Tool-less adjustment for 35° vertical tilt and 362° rotation of the light module with locking mechanism.
Field-changeable optics.
Shrouds for 10°-20° and 20°-35° tilt spot optic with no lens ensure a pleasing visual appearance, lights on or off.
Available with The Naturals, a series of nature-inspired finishes.
Die-cast, overlap trim.
Die-cast heat sink designed for maximum thermal dissipation.
Performance
CBCP up to 9,609 Cd for 20° Spot.
Beam spreads from 20° to 77° and two linear spreads 58° x 32° & 32° x 58°.
Solite lens supports visual comfort.
Standard lumen outputs from 500 to 1500.
80, 90, 97 CRI.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
Designed for highlighting artwork and architectural features in residential, commercial, retail, hospitality, and museum applications.
High lumen outputs support high ceiling applications.
Ideal for shallow or restricted plenums and sloped ceilings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.625"L: 4.625"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI97 90
- Watt(Approx)6.9 W9.3 W14 W16.6 W19.3 W22.1 W
- Lumens(Approx)491 Lm687 Lm884 Lm1080 Lm1277 Lm1473 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULBAA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth3.52 ''3.12 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLCS33-SO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
