Focal Point (Legrand)

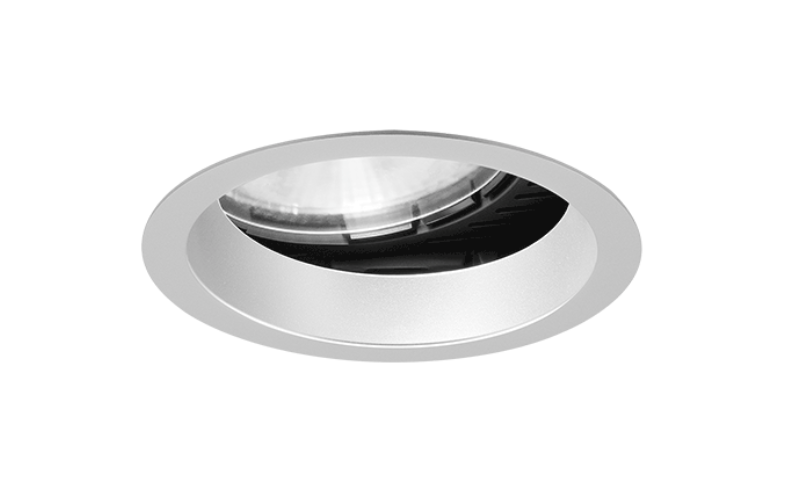

FLCS4. ID+ 4.5'' LED ADJUSTABLE DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
4.5" aperture round LED adjustable accent
Tool-less adjustment for 0°-40° tilt and 364° rotation
Field-changeable optics
4" low-profile housing (5" for IC- or CP-rated)
Performance
CBCP up to 28,962Cd for 12° Spot
Beam spreads from 12° to 90°
Standard lumen outputs from 1000lm to 4000lm
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources
Application
Suited for ambient, task, and accent lighting in commercial, hospitality, retail, museum, gallery, and residential environments
High lumen outputs, low-profile housing, and adjustability support high or sloped ceiling applications
Ideal for shallow or restricted plenum
4.5" aperture round LED adjustable accent
Tool-less adjustment for 0°-40° tilt and 364° rotation
Field-changeable optics
4" low-profile housing (5" for IC- or CP-rated)
Performance
CBCP up to 28,962Cd for 12° Spot
Beam spreads from 12° to 90°
Standard lumen outputs from 1000lm to 4000lm
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources
Application
Suited for ambient, task, and accent lighting in commercial, hospitality, retail, museum, gallery, and residential environments
High lumen outputs, low-profile housing, and adjustability support high or sloped ceiling applications
Ideal for shallow or restricted plenum
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.5"5.1"L: 5.5"5.1"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI80 90 97
- Watt(Approx)11.5 W16.8 W23.7 W27.2 W32.5 W38.1 W44.3 W
- Lumens(Approx)1042 Lm1508 Lm2025 Lm2561 Lm3073 Lm3539 Lm4113 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULEnergy Star*
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTrimless Wood
- HousingNew ConstructionICChicago Plenum
- Housing Depth4 ''5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
