Focal Point (Legrand)

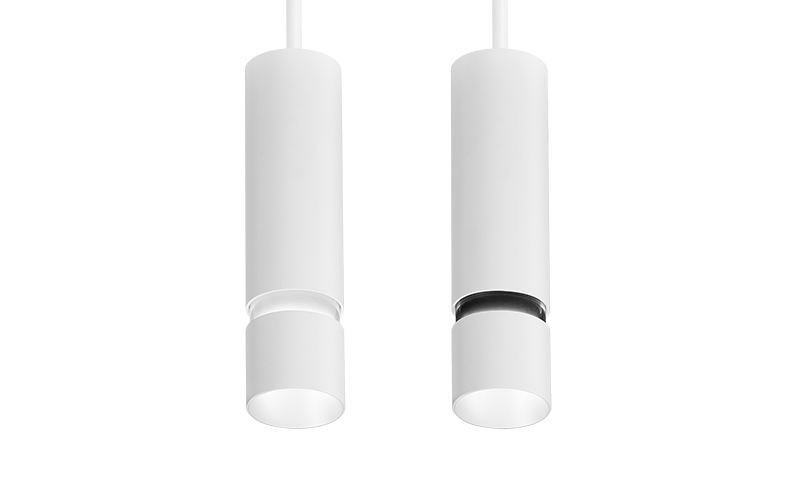

FLCY2. ID+ 2'' Cylinder LED PENDANT WITH DECORATIVE REVEAL.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Companion to ID+ 2.5" Downlight family.
Decorative reveal with optional glowing or non-glow reveal.
Standard white, black, clear diffuse, warm diffuse, or custom color options for glowing reveal.
One-piece die-cast reflector with knife edge provides a sophisticated aesthetic.
Cord, fixed stem, or 50° swivel stem option available.
Performance
Narrow to super wide flood distribution options.
50° cut-off for brightness control and visual comfort.
Super Short Cone with Solite lens for uniform light output and beam spreads from 20° to 90°.
Clear or warm diffuse reflector.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
Designed for a wide variety of applications including offices, conference rooms, hospitality, healthcare and residential environments.
Provides a seamless appearance when used in combination with ID+ 2” Wall Wash and 2.5" Downlights.
Shallow, decorative shallow, power, and decorative power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
Companion to ID+ 2.5" Downlight family.
Decorative reveal with optional glowing or non-glow reveal.
Standard white, black, clear diffuse, warm diffuse, or custom color options for glowing reveal.
One-piece die-cast reflector with knife edge provides a sophisticated aesthetic.
Cord, fixed stem, or 50° swivel stem option available.
Performance
Narrow to super wide flood distribution options.
50° cut-off for brightness control and visual comfort.
Super Short Cone with Solite lens for uniform light output and beam spreads from 20° to 90°.
Clear or warm diffuse reflector.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
Designed for a wide variety of applications including offices, conference rooms, hospitality, healthcare and residential environments.
Provides a seamless appearance when used in combination with ID+ 2” Wall Wash and 2.5" Downlights.
Shallow, decorative shallow, power, and decorative power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.36"L: 2.36"H: 9.07"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI90
- Watt(Approx)6.7 W9 W11.8 W14.5 W17.4 W20.7 W25.6 W
- Lumens(Approx)519 Lm727 Lm934 Lm1142 Lm1350 Lm1557 Lm1765 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLCY2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
