Focal Point (Legrand)

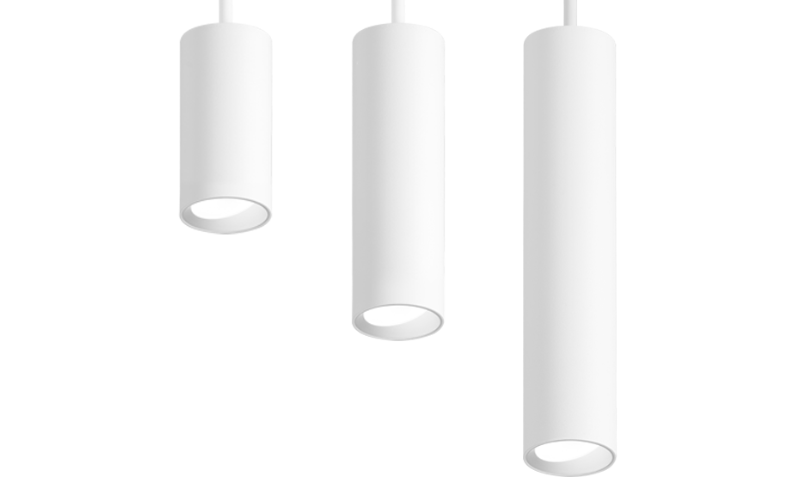

ID+ 2.5'' Pure Cylinder Wall Wash 5'' Height.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Companion to ID+ 2.5" Downlight family.
Sleek, solid housing.
Nominal 5", 8" & 12" standard housing heights.
Standard white, black, palladium silver or custom RAL value for housing, stem, and canopy.
Available with The Naturals, a series of nature-inspired finishes.
Field-cuttable fixed or 50° swivel stem mounting.
Toolless aiming mechanism.
Performance
Clear diffuse, warm diffuse, white or black reflector.
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI.
Application
Designed for a wide variety of applications including commercial offices, hospitality, and residential environments.
Provides a cohesive light quality and common design language when used in combination with ID+ 2.5" Downlights.
Shallow, decorative shallow, power, decorative power, and mini power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
Companion to ID+ 2.5" Downlight family.
Sleek, solid housing.
Nominal 5", 8" & 12" standard housing heights.
Standard white, black, palladium silver or custom RAL value for housing, stem, and canopy.
Available with The Naturals, a series of nature-inspired finishes.
Field-cuttable fixed or 50° swivel stem mounting.
Toolless aiming mechanism.
Performance
Clear diffuse, warm diffuse, white or black reflector.
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI.
Application
Designed for a wide variety of applications including commercial offices, hospitality, and residential environments.
Provides a cohesive light quality and common design language when used in combination with ID+ 2.5" Downlights.
Shallow, decorative shallow, power, decorative power, and mini power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 2.5"H: 5.5"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI97 90
- Watt(Approx)6.1 W8.3 W10.9 W13.7 W16.7 W19.6 W23 W
- Lumens(Approx)485 Lm679 Lm873 Lm1067 Lm1261 Lm1455 Lm1649 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance200000 h
- CertificatesUL/CULBAA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLCY2WN-5
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
