ID+ 2.5''Pure Cylinder Wall Wash Surface Mount 5'' Height.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Companion to ID+ 2.5" Downlight family.
Sleek, solid housing.

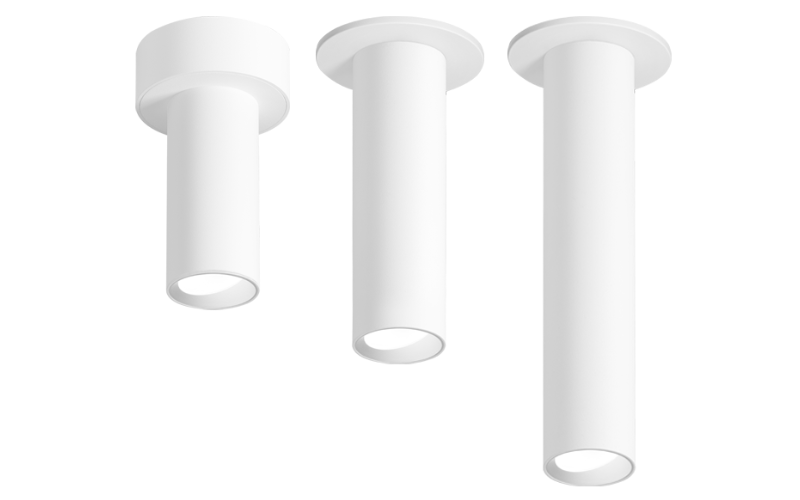

Nominal 5", 8" & 12" standard housing heights.

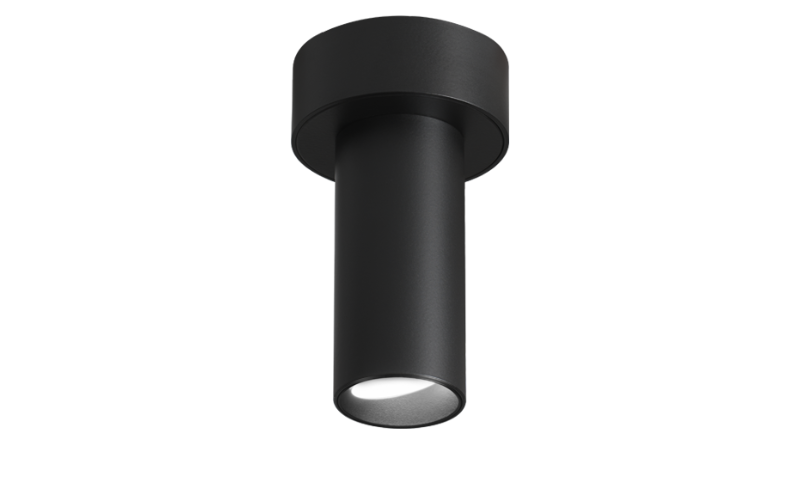

Standard white, black, palladium silver or custom RAL value for housing and canopy.

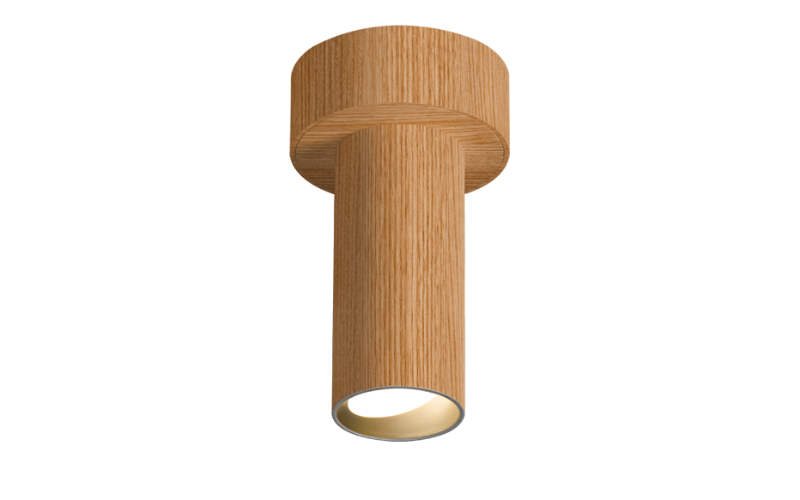

Available with The Naturals, a series of nature-inspired finishes.
Toolless aiming mechanism.
Performance
Clear diffuse, warm diffuse, white or black reflector.
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI.
Application
Ideal for low ceiling applications in commercial offices, hospitality, and residential environments.
Provides a cohesive light quality and common design language when used in combination with ID+ 2.5" Downlights.
Shallow, decorative shallow, and mini power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
Companion to ID+ 2.5" Downlight family.
Sleek, solid housing.
Nominal 5", 8" & 12" standard housing heights.
Standard white, black, palladium silver or custom RAL value for housing and canopy.
Available with The Naturals, a series of nature-inspired finishes.
Toolless aiming mechanism.
Performance
Clear diffuse, warm diffuse, white or black reflector.
Two warm dim spectra at 90 CRI mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K at 80, 90, or 97 CRI.
Application
Ideal for low ceiling applications in commercial offices, hospitality, and residential environments.
Provides a cohesive light quality and common design language when used in combination with ID+ 2.5" Downlights.
Shallow, decorative shallow, and mini power canopies support finished or open ceiling configurations.
Low-voltage, PoE compatible option.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 2.5"H: 5.5"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI97 90
- Watt(Approx)5.3 W7.4 W9.7 W12.1 W14.6 W17.3 W
- Lumens(Approx)505 Lm707 Lm909 Lm1112 Lm1314 Lm1516 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance200000 h
- CertificatesUL/CULBAA
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
