Focal Point (Legrand)

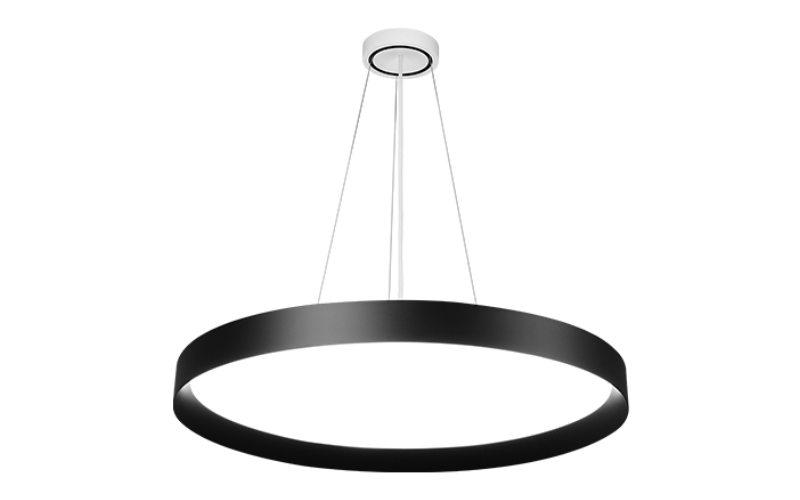

FSDEP. Skydome Edge LED PENDANT.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
IES
- FSDEP2FL2000DN_ALLUP.zip
- FSDEP2FL3000DN_ALLUP.zip
- FSDEP2FL4000DN_ALLUP.zip
- FSDEP2FL5000DN_ALLUP.zip
- FSDEP3FL4000DN_ALLUP.zip
- FSDEP3FL5000DN_ALLUP.zip
- FSDEP3FL7000DN_ALLUP.zip
- FSDEP3FL9000DN_ALLUP.zip
- FSDEP4FL7000DN_ALLUP.zip
- FSDEP4FL9000DN_ALL_UP.zip
- FSDEP4FL11000DN_ALL_UP.zip
- FSDEP4FL14000DN_ALL_UP.zip
DESCRIPTION
Design
Low profile 2.9" and 3.9" housing heights.
Nominal 2', 3' and 4' diameters with direct and indirect distribution options.
Sharp knife edge provides a sophisticated aesthetic.
Performance
Uses edge lighting technology to deliver uniformity on the lens and comfortable ambient lighting.
Direct/indirect illumination can be specified and controlled independently.
Unlit, sound-absorbing acoustic companion available to achieve desired reverberation levels with a coordinated look.
Application

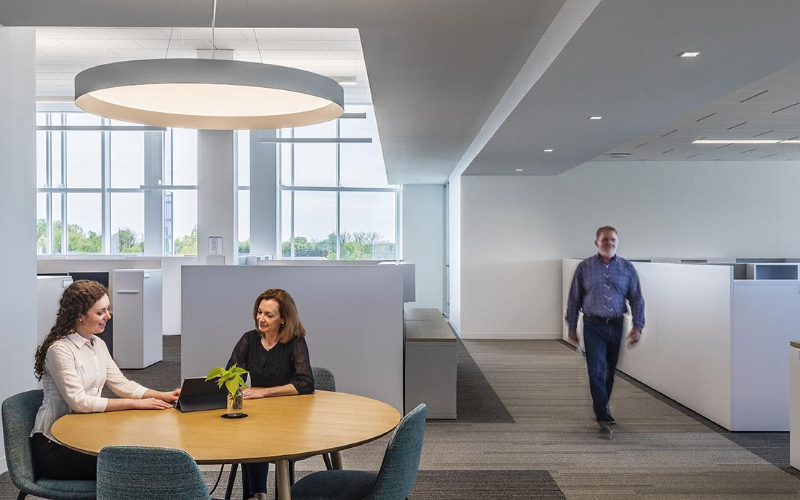

Designed to accommodate diverse commercial spaces: airport concourses, large lobbies, reception areas, conference rooms and open workspaces.
Low profile 2.9" and 3.9" housing heights.
Nominal 2', 3' and 4' diameters with direct and indirect distribution options.
Sharp knife edge provides a sophisticated aesthetic.
Performance
Uses edge lighting technology to deliver uniformity on the lens and comfortable ambient lighting.
Direct/indirect illumination can be specified and controlled independently.
Unlit, sound-absorbing acoustic companion available to achieve desired reverberation levels with a coordinated look.
Application
Designed to accommodate diverse commercial spaces: airport concourses, large lobbies, reception areas, conference rooms and open workspaces.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 Ft3 Ft4 FtL: 2 Ft3 Ft4 FtH: 3.0"3.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)17 W26 W35 W44 W63 W85 W105 W135 W
- Lumens(Approx)500 Lm1000 Lm1500 Lm2000 Lm3000 Lm2500 Lm4000 Lm5000 Lm7000 Lm9000 Lm11000 Lm14000 Lm
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
FSDEP
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
