Focal Point (Legrand)
FSS2BS. Seem Sweep® 2 Straights LED DIRECT/INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

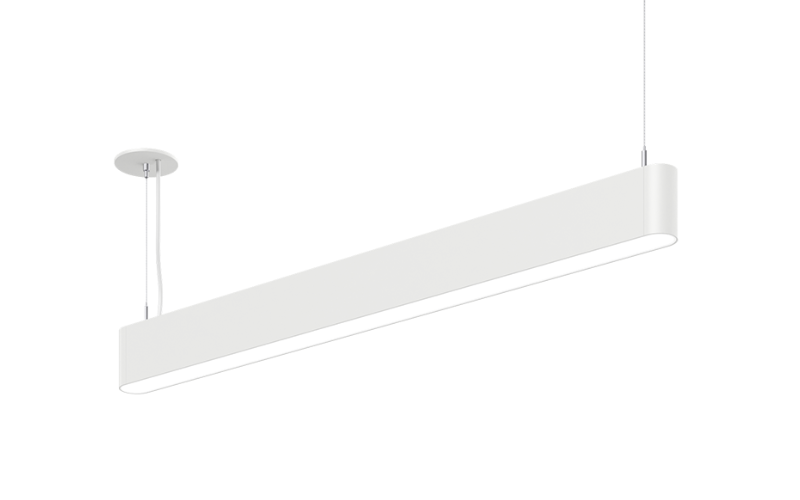

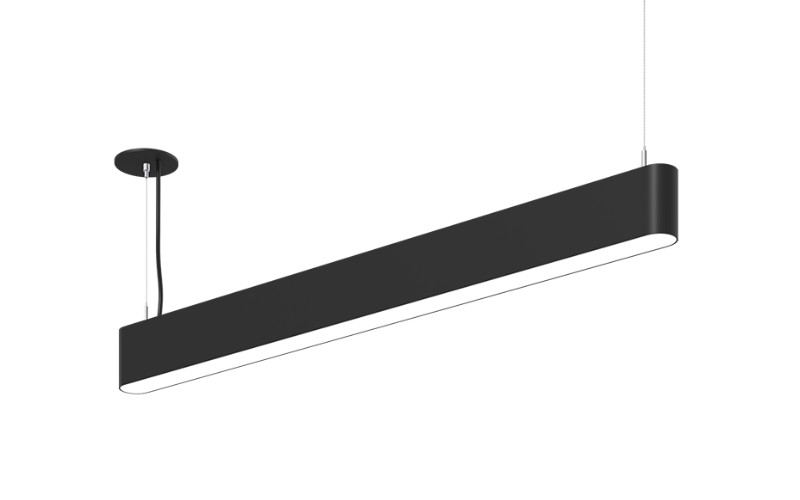

Narrow 2.5" aperture, suspended, direct/indirect, straight LED luminaire with rounded end caps.
Flush lens for direct illumination and indirect Lambertian and Batwing optics available to provide visual comfort with uniform illumination and brightness control.
Cohesive aesthetic when paired with other Seem Sweep 2 and Seem 2 luminaires within a space.
Performance
Specify lumen outputs separately for Direct and Indirect to achieve optimal distributions.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
Application

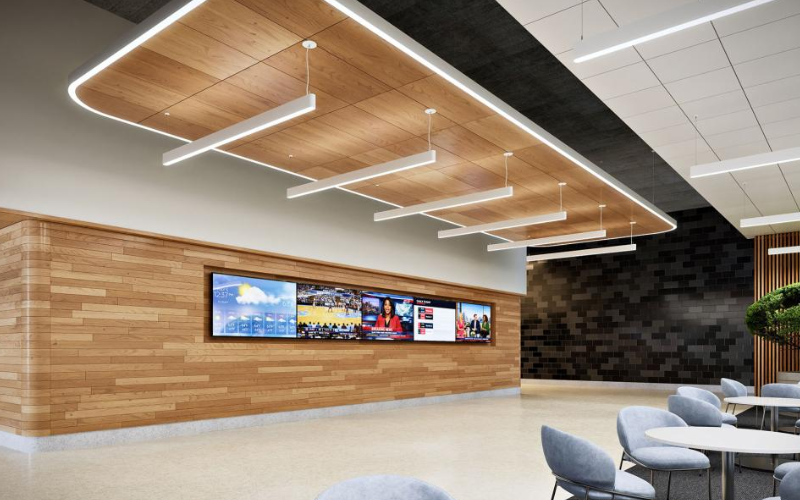

Makes an exceptional aesthetic statement in commercial offices, educational facilities, transit terminals, hospitality venues, or healthcare facilities.
Narrow 2.5" aperture, suspended, direct/indirect, straight LED luminaire with rounded end caps.
Flush lens for direct illumination and indirect Lambertian and Batwing optics available to provide visual comfort with uniform illumination and brightness control.
Cohesive aesthetic when paired with other Seem Sweep 2 and Seem 2 luminaires within a space.
Performance
Specify lumen outputs separately for Direct and Indirect to achieve optimal distributions.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
Application
Makes an exceptional aesthetic statement in commercial offices, educational facilities, transit terminals, hospitality venues, or healthcare facilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.64"L: Run length (inch)H: 4.57"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)3.17 W/Ft4.13 W/Ft4.9 W/Ft3.18 W/Ft4 W/Ft5.7 W/Ft6.6 W/Ft5.65 W/Ft6.5 W/Ft7.3 W/Ft8.65 W/Ft7.35 W/Ft8.6 W/Ft9.5 W/Ft10 W/Ft
- Lumens(Approx)250 Lm/Ft375 Lm/Ft500 Lm/Ft625 Lm/Ft750 Lm/Ft875 Lm/Ft1000 Lm/Ft1125 Lm/Ft1250 Lm/Ft
- OpticsDirect/IndirectGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworkLutron®EthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance61000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFSS2BS-ST
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
