Focal Point (Legrand)
FSS2FS. Seem Sweep® 2 Arcs LED.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

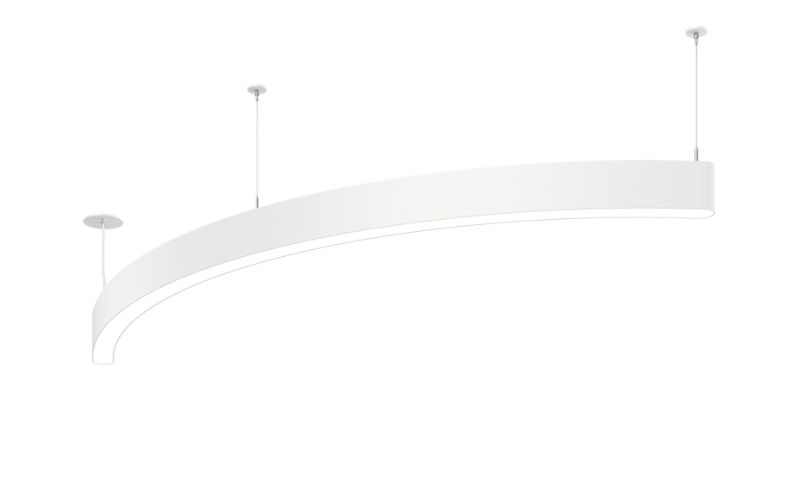

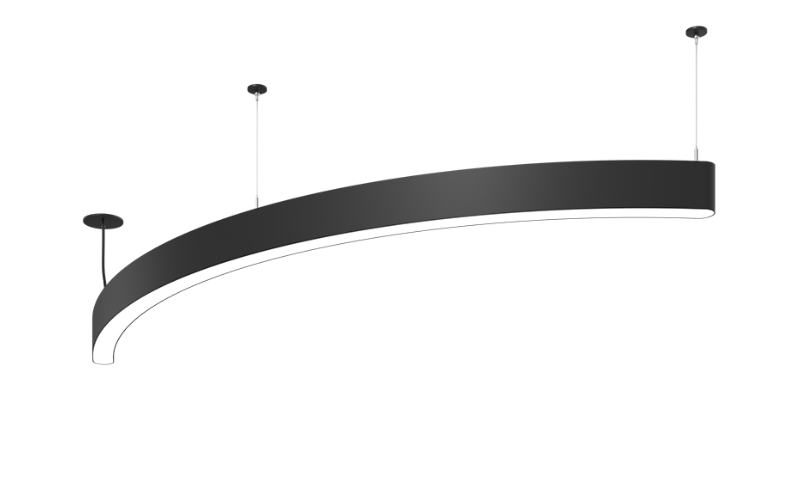

Narrow 2.5" aperture, suspended and surface mount, arc-shaped LED luminaire with rounded end caps.
Flush lens provides visual comfort with uniform illumination and brightness control.
Cohesive aesthetic when paired with other Seem Sweep 2 and Seem 2 luminaires within a space.
Performance
Curvilinear LED boards create seamless sweeping lines of light without pixels or shadows.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
Application

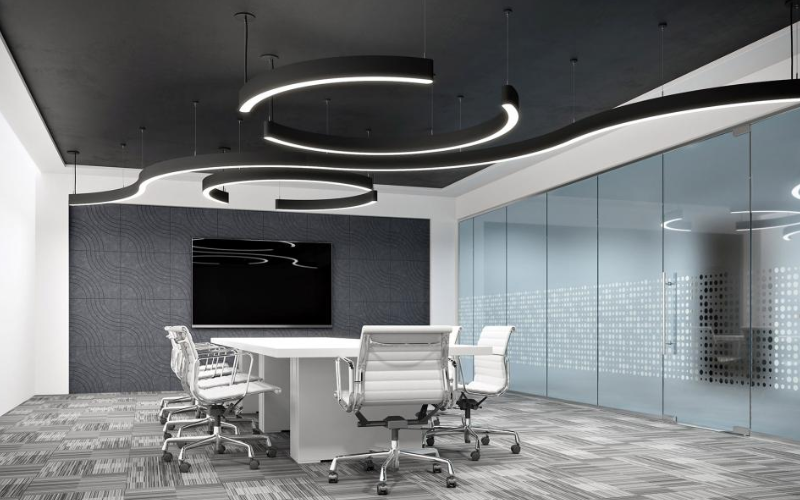

Makes an exceptional aesthetic statement in commercial offices, educational facilities, transit terminals, hospitality venues, or healthcare facilities.
Narrow 2.5" aperture, suspended and surface mount, arc-shaped LED luminaire with rounded end caps.
Flush lens provides visual comfort with uniform illumination and brightness control.
Cohesive aesthetic when paired with other Seem Sweep 2 and Seem 2 luminaires within a space.
Performance
Curvilinear LED boards create seamless sweeping lines of light without pixels or shadows.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
Application
Makes an exceptional aesthetic statement in commercial offices, educational facilities, transit terminals, hospitality venues, or healthcare facilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.64"H: 4.57"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)1.82 W/Ft3 W/Ft4.1 W/Ft5.2 W/Ft6.76 W/Ft8 W/Ft8.77 W/Ft
- Lumens(Approx)250 Lm/Ft375 Lm/Ft500 Lm/Ft625 Lm/Ft750 Lm/Ft875 Lm/Ft1000 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworkLutron®EthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance61000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFSS2FS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
