Focal Point (Legrand)
FSS2S. Seem Sweep® 2 Straights LED.
 Configure
 Add to project

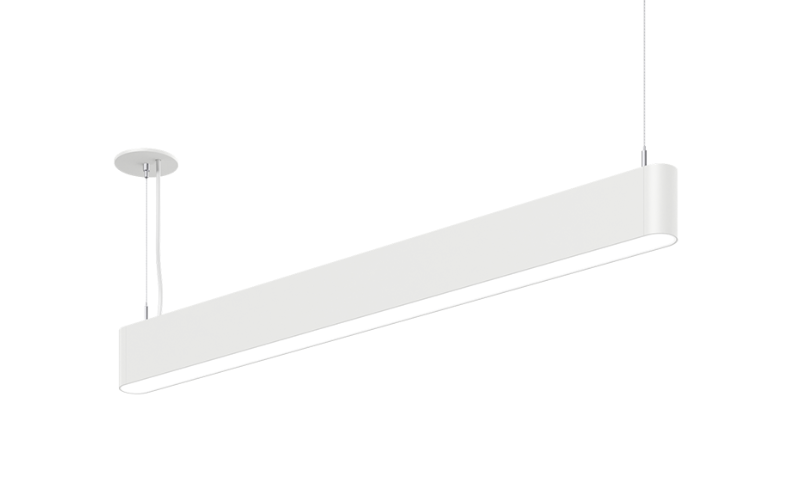

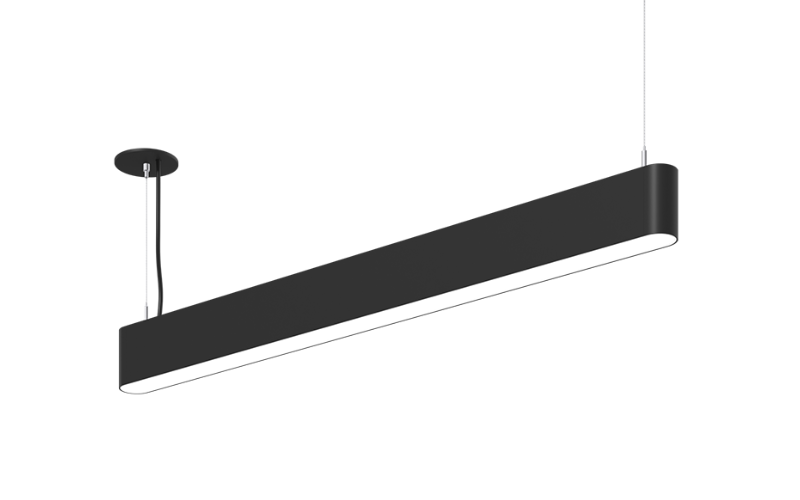

Focal Point. FSS2S. Seem Sweep® 2 Straights.
Focal Point. FSS2S. Seem Sweep® 2 Straights.
Focal Point. FSS2S. Seem Sweep® 2 Straights.
Focal Point. FSS2S. Seem Sweep® 2 Straights.
RESOURCES
DESCRIPTION
Design
Narrow 2.5" aperture, suspended and surface mount, straight LED luminaire with rounded end caps.

Flush lens provides visual comfort with uniform illumination and brightness control.

Cohesive aesthetic when paired with other Seem Sweep 2 and Seem 2 luminaires within a space.

Performance
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.

Application

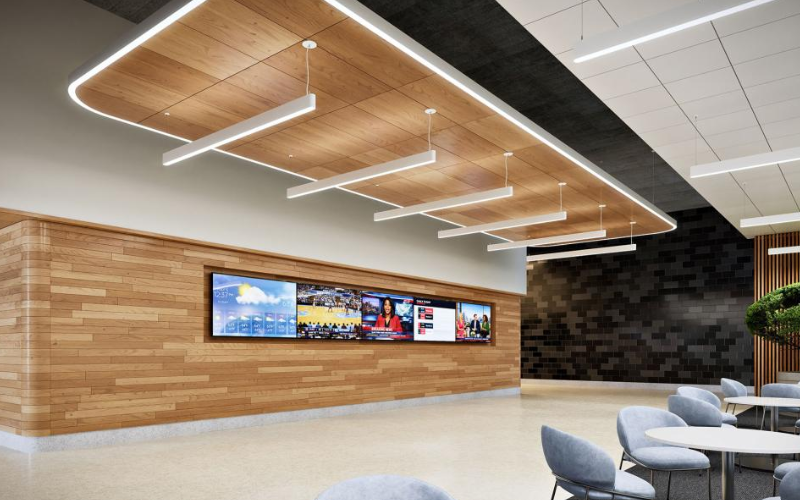

Makes an exceptional aesthetic statement in commercial offices, educational facilities, transit terminals, hospitality venues, or healthcare facilities.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.64"
    L: Run length (inch)
    H: 4.57"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    1.82 W/Ft3 W/Ft4.1 W/Ft5.2 W/Ft6.76 W/Ft8 W/Ft8.77 W/Ft
  • Lumens(Approx)
    250 Lm/Ft375 Lm/Ft500 Lm/Ft625 Lm/Ft750 Lm/Ft875 Lm/Ft1000 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
    Lutron®EthernetWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    61000 h
  • Certificates
    UL/CULBAA
  • Environment
    Damp
  • Mounting Type
    PendantCeiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
