Focal Point (Legrand)

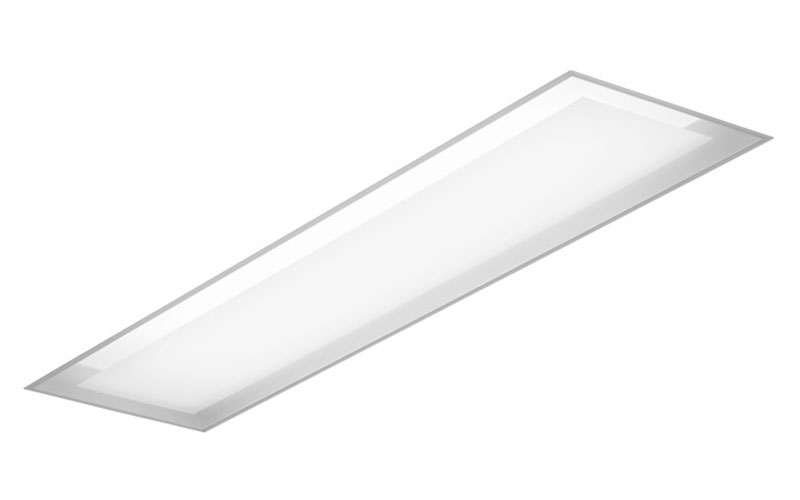

FZR. Zephyr 1x4 LED.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Architectural innovation and natural inspiration come together with Zephyr.
Zephyr's non-directional solution features a unique design which creates the impression that the bottom lens is floating.
The one-piece hinging optical assembly allows for easy access to LEDs and driver.
Performance
Dual lens system features an optical microstructure providing glare control and high levels of efficiency.
LPW's up to 112.
Standard Right Light lumen outputs from 1000 to 7500 lumens.
Application
General illumination. From private & open office to healthcare, Zephyr works in any space.
Architectural innovation and natural inspiration come together with Zephyr.
Zephyr's non-directional solution features a unique design which creates the impression that the bottom lens is floating.
The one-piece hinging optical assembly allows for easy access to LEDs and driver.
Performance
Dual lens system features an optical microstructure providing glare control and high levels of efficiency.
LPW's up to 112.
Standard Right Light lumen outputs from 1000 to 7500 lumens.
Application
General illumination. From private & open office to healthcare, Zephyr works in any space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)11 W15 W20 W25 W30 W37 W40 W44 W46 W51 W58 W61 W67 W73 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm5000 Lm5500 Lm6000 Lm6500 Lm7000 Lm7500 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernetEnlightednLight®ENCELIUM®Wattstopper® DLMNX WirelessWaveLinxIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance42000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago PlenumAir Return
- Housing Depth5.21 ''6.36 ''
