Fail-Safe (Cooper Lighting Solutions)

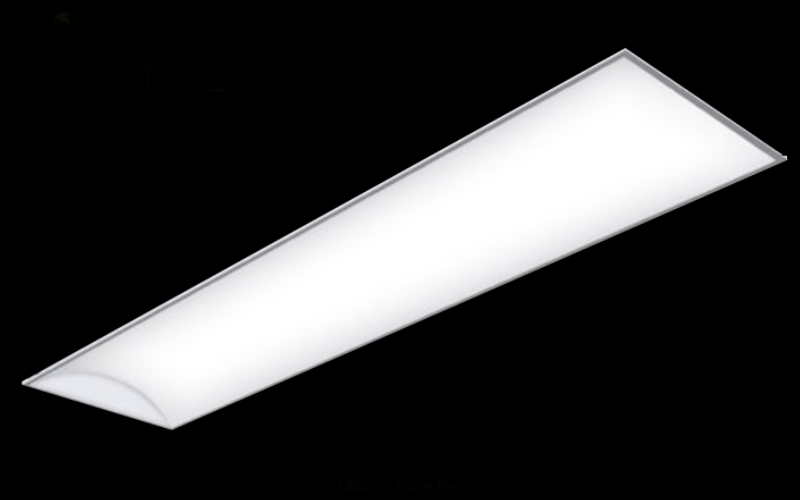

AID. 1x4 ArcMed Sealed InDepth Clear Bottom Lens.
 Configure
 Add to project
Fail-Safe. 14AID. 1x4 ArcMed Sealed InDepth Clear Bottom Lens.
Fail-Safe. 14AID. 1x4 ArcMed Sealed InDepth Clear Bottom Lens.
Fail-Safe. AID. 1x4 ArcMed Sealed InDepth Clear Bottom Lens.
RESOURCES
DESCRIPTION

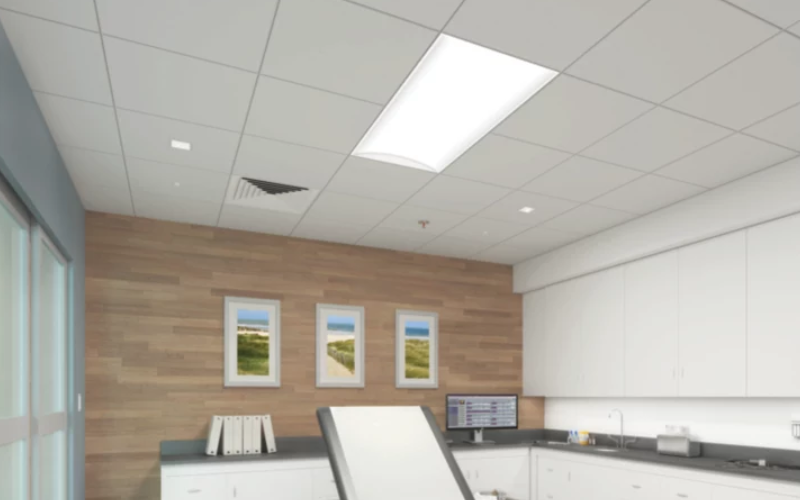

FailSafe ArcMed Sealed InDepth allows for the use of the stylish InDepth luminaire in complex environments such as behavioral health, sterile environments, healthcare, food service/processing/prep, and general wet location environments. Sealed clear bottom lens provides physical protection and also provides dust and water ingress protection.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft
    L: 4 Ft
    H: 4 5/16"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000K
  • CRI
    80
  • Watt(Approx)
    16.5 W20.5 W24.9 W28.5 W33.4 W38.5 W43.1 W48.2 W53.3 W65.6 W77.1 W
  • Lumens(Approx)
    1991 Lm2525 Lm3053 Lm3468 Lm4091 Lm4470 Lm5119 Lm5621 Lm6162 Lm7198 Lm7956 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Step DimELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralRemoteUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    131000 h
  • Certificates
    UL/CULT24*NSFRoHS
  • Environment
    Clean RoomAntimicrobial FinishIP65VandalproofFood ProcessingHealthcare General
  • Mounting Type
    Ceiling SurfaceCeiling RecessedDrywall
  • Housing
    ICChicago Plenum
  • Housing Depth
    4 5/16 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
