Fail-Safe (Cooper Lighting Solutions)

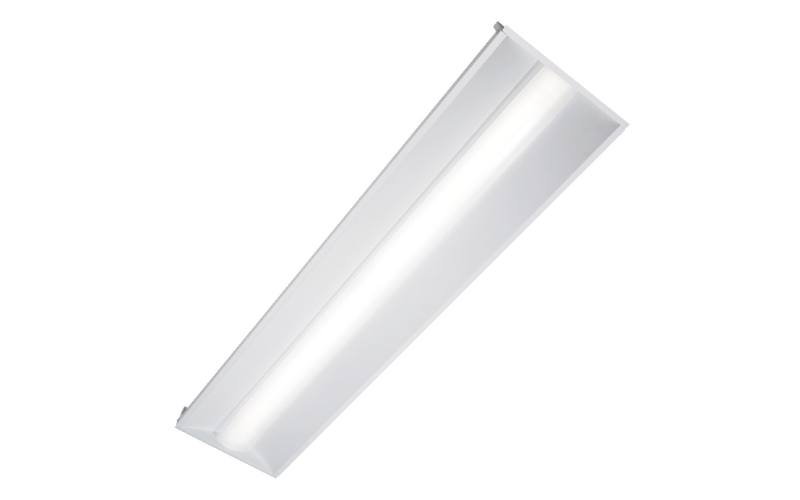

FCZ2. 1x4 Sealed Center Basket Sterile Environments / Behavioral Health Curved or Square Lens.
Configure
Add to project
RESOURCES
DESCRIPTION
The Fail-Safe FCZ is a sealed, IP65 rated center basket troffer with high performance, visual comfort and aesthetics. Offered in three different sizes, multiple lumen packages, and optional polycarbonate lenses, the FCZ is an excellent choice for a wide range of applications including vandal-resistant, behavioral health, medical, cleanroom, and hose down.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K6500KTunable White
- CRI80 90
- Watt(Approx)16.3 W29.3 W20.5 W24.3 W36.9 W31.2 W32.3 W38.3 W48.3 W
- Lumens(Approx)1940 Lm2390 Lm2782 Lm3832 Lm4661 Lm3426 Lm3799 Lm4360 Lm5819 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEnlightedWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance132000 h
- CertificatesUL/CULMade in USANSFRoHSBAA
- EnvironmentClean RoomAntimicrobial FinishIP65Healthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth2 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time14FCZ2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
