Fail-Safe (Cooper Lighting Solutions)

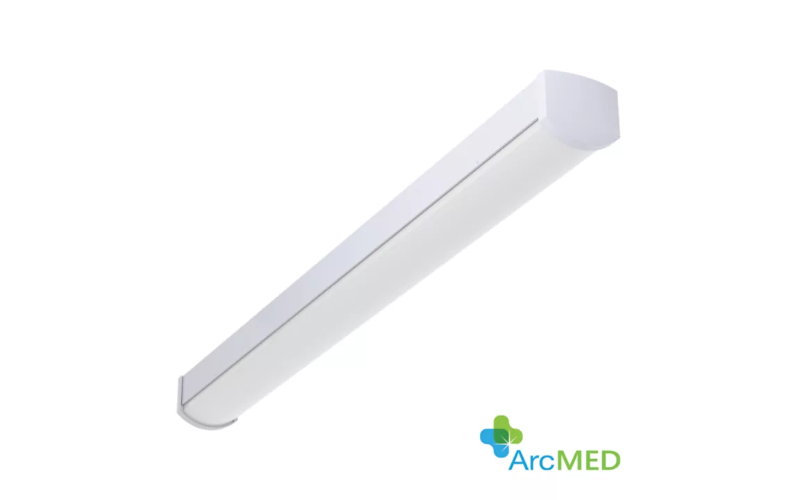

ASL4. Architectural Surface Linear 4'' Impact Resistant.
Configure
Add to project
RESOURCES
DESCRIPTION
ASL4 provides an aesthetically pleasing solution to your demanding and challenging environments. Aluminum extruded housing from 1' to 8', individual or continuous mount, surface or suspended, ambient operating temperatures to 50C, up to 3500 lumens / linear foot, a multitude of LED color temperatures -- ensures a long-lasting luminaire that exceeds expectations
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/8"L: 1 Ft2 Ft3 Ft4 Ft6 Ft8 FtH: 3 1/2"
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K5000K6500KTunable WhiteRedGreen
- CRI90
- Watt(Approx)4.5 W/Ft4.3 W/Ft8.8 W/Ft8.3 W/Ft13 W/Ft17.9 W/Ft16.9 W/Ft21.5 W/Ft26.3 W/Ft31.6 W/Ft
- Lumens(Approx)558 Lm/Ft568 Lm/Ft1038 Lm/Ft1047 Lm/Ft1575 Lm/Ft2089 Lm/Ft2069 Lm/Ft2570 Lm/Ft3063 Lm/Ft3569 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULMade in USAADADLC*NSFBAA
- EnvironmentAntimicrobial FinishDampWetHealthcare General

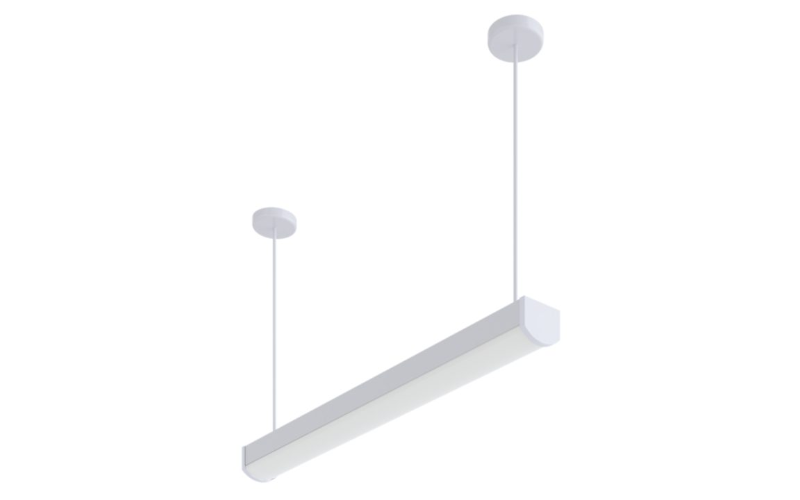

- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeASL4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
