Fail-Safe (Cooper Lighting Solutions)

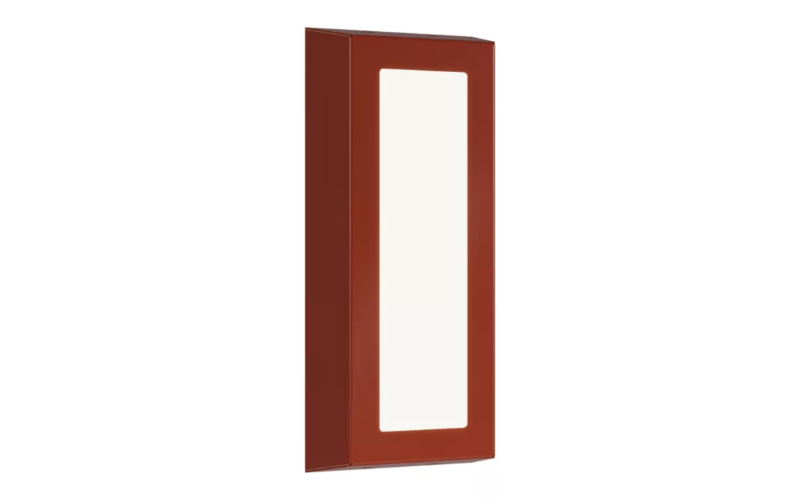

FSC. Shallow Sconce Behavioral Health / High Abuse Wall or Ceiling Mount ADA Compliant.
Configure
Add to project




RESOURCES
DESCRIPTION
Designed with both safety and functionality in mind, this innovative lighting solution is tailored to meet the unique needs of behavioral and mental health environments while ensuring ADA compliance. With a slim 2 ½” profile and versatile size options (4” and 8” widths, 1’ and 2’ lengths), it delivers lumen packages ranging from 500 to 2,500 lumens, including an optional amber night light. Its thoughtful 10-degree tapered design and flush, tamper-resistant hardware enhance ligature and impact resistance, providing the utmost in safety. Constructed with multiple front cover steel thicknesses for varying security levels, each cover is welded and ground smooth to minimize ligature points. Dual-layer lenses include an inner opal option or three natural patterns, paired with outer clear polycarbonate lenses (0.125”–0.250” thick) with IK10 impact resistance. Finished in matte white anti-microbial paint for hygiene, it offers 16 standard architectural colors and custom options to match any space. Ideal for high-demand environments, this lighting solution is built for durability, security, and aesthetic adaptability.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 5/16"L: 5 5/8"7 3/4"H: 10 13/16"9 7/8"19 11/16"20 5/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)7.4 W6.3 W7 W11 W15 W12.3 W14.8 W11.1 W12 W22.2 W29.6 W22.8 W
- Lumens(Approx)500 Lm750 Lm1000 Lm1500 Lm2000 Lm2500 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULADABAA
- EnvironmentDampPatient RoomHealthcare General
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFSC
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
