Fail-Safe (Cooper Lighting Solutions)

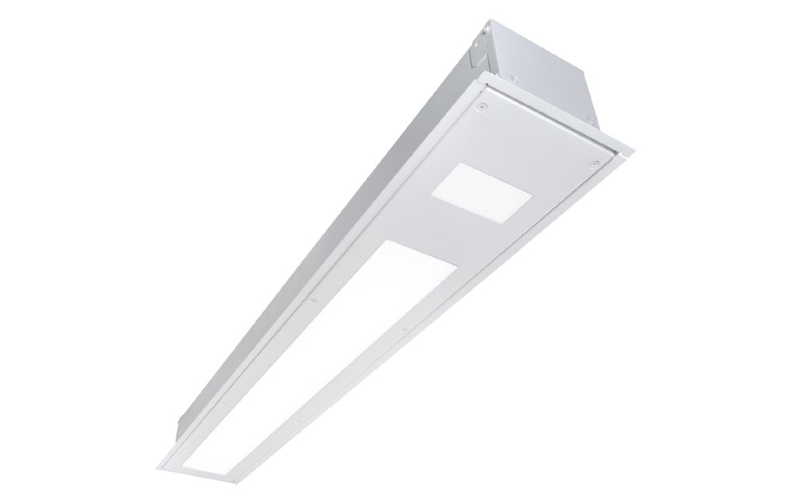

MNAE. Medical Narrow Ambient Exam LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The fully enclosed MNAE offers ambient, exam, and reading functions. Specify the chart light and/or night light for additional flexibility. The small aperture MNAE fits flush to the ceiling line, enabling quick, easy, and effective wipe down. Typically used in pairs along both sides of the bed, the MNAE offers glare / shadow free illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 3/4"L: 3 Ft4 Ft5 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80
- Watt(Approx)25 W35 W45 W
- Lumens(Approx)1925 Lm1840 Lm2560 Lm2450 Lm2970 Lm3140 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULBAA
- EnvironmentAntimicrobial FinishIP66Patient RoomHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew Construction
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
