Gardco (Genlyte Solutions)

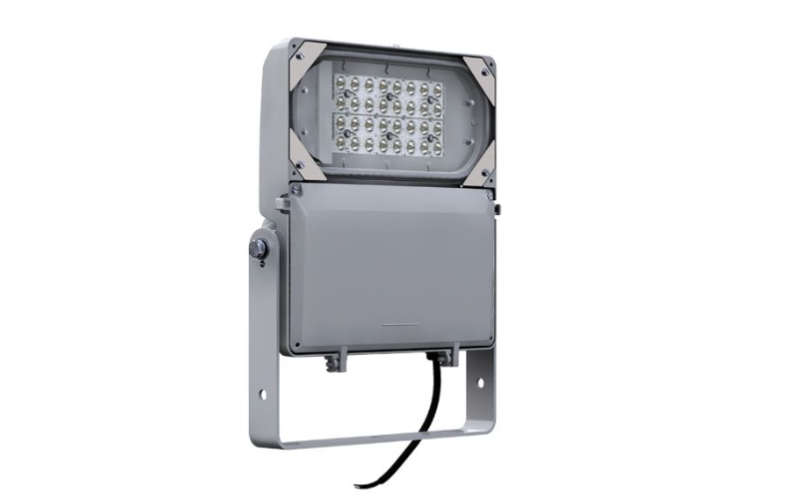

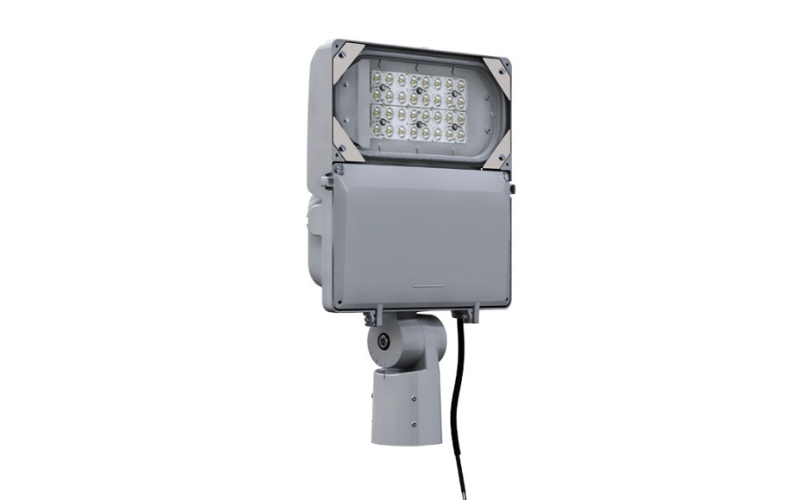

FLDS. DuraForm small floodlight.
Configure
Add to project
RESOURCES
DESCRIPTION
Gardco DuraForm small floodlight provides seamless replacement of existing HID luminaires. This luminaire is available in three sizes (also see FLDM and FLDL), offers multiple lumen packages, and a complete array of optical distributions, making it an outstanding solution for all types of floodlighting applications. Includes Service Tag, Signify's innovative way to provide assistance throughout the life of the product.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.36"L: 15.55"H: 16.36"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)29 W43 W53 W56 W82 W109 W
- Lumens(Approx)3518 Lm5007 Lm6252 Lm6898 Lm9982 Lm12385 Lm
- OpticsDirectNarrowFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDLC*
- EnvironmentIP66MarineCorrosion Resistant
- Mounting TypeYokeSlip Fitter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLDS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
