Gardco (Signify)
GCS. GeoForm LED Wall Sconce.
Configure
Add to project




RESOURCES
DESCRIPTION

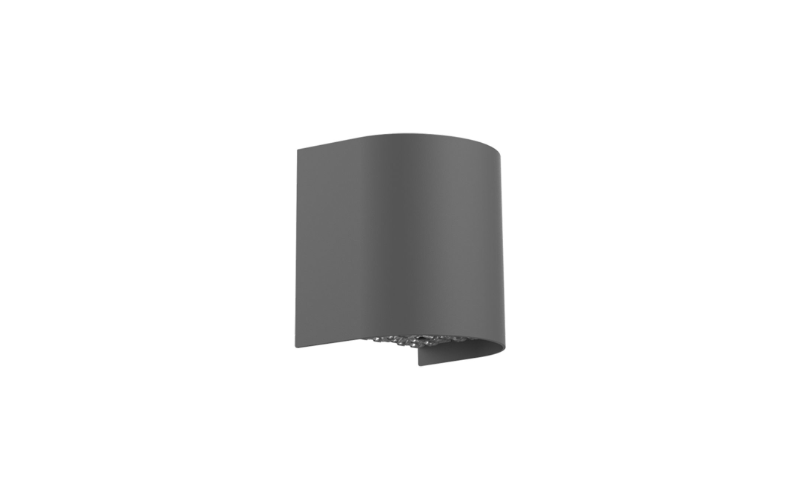

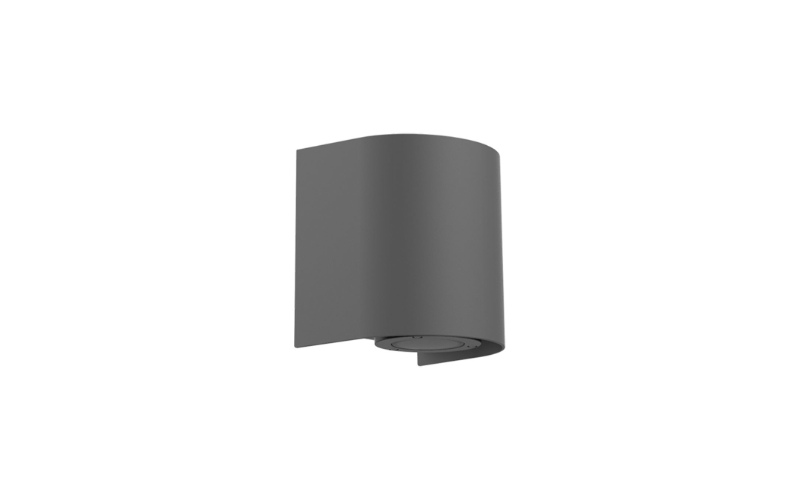

Gardco GeoForm cylinder small LED wall sconce features a compact geometric design that will complement a range of architectural styles. GeoForm is available with two light engines: highly efficient precision plus optics which feature type 2, 3, and 4 distributions, as well as light effects optics which offer wall wash, spot, and pencil beam distributions. GeoForm with light effects may be inverted for a wet location uplight option. Emergency battery backup option provides path-of-egress illumination. Multiple control options, including wireless Interact Pro outdoor, further enhance energy savings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.5"L: 7"H: 7.9"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI80 70
- Watt(Approx)10 W8 W17 W18 W25 W30 W34 W41 W
- Lumens(Approx)734 Lm1467 Lm1756 Lm2934 Lm2568 Lm4171 Lm5449 Lm6514 Lm
- OpticsDirectFloodAsymmetric/WashType IIType IIIType IV
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance102000 h
- CertificatesUL/CULDark SkyDLC*BAA
- EnvironmentIP65Corrosion Resistant
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
