Gardco (Signify)

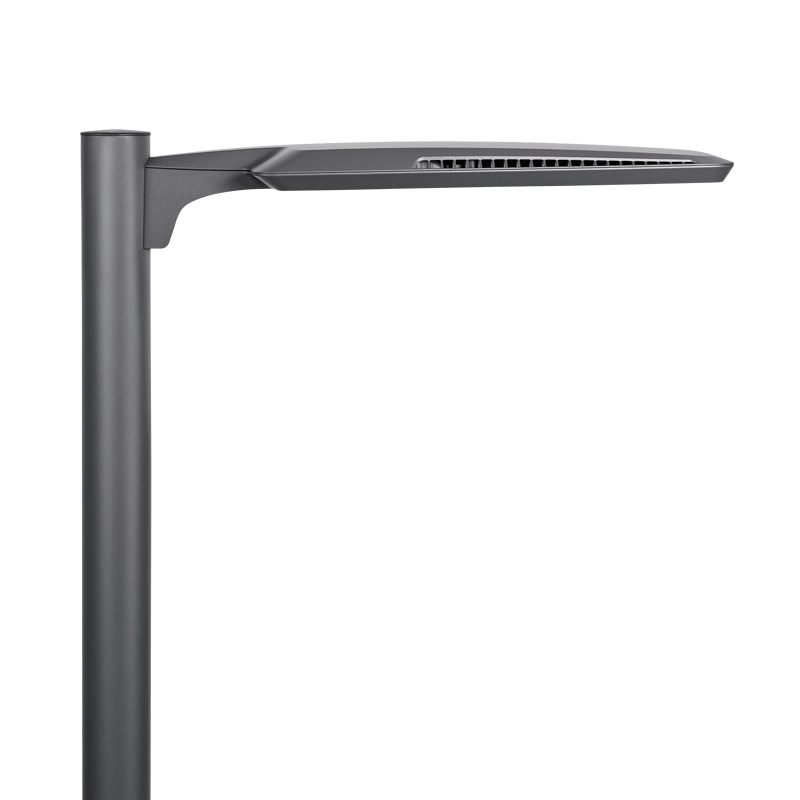

P26. PureForm medium area light.
Configure
Add to project
RESOURCES
DESCRIPTION
Gardco PureForm LED area medium P26 features a sleek, low profile design and optimal performance. PureForm area medium is designed to achieve maximum pole spacing, with lumen output up to 28,900 lumens. Multiple distribution and shielding options are available to achieve maximum control. A full range of control options provides additional energy savings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 17.7"L: 33.8"35"35.5"43.4"H: 5.7"5.1"7.4"7"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI80 70
- Watt(Approx)68 W85 W103 W123 W149 W154 W178 W206 W230 W267 W304 W344 W383 W
- Lumens(Approx)12000 Lm15500 Lm18000 Lm22000 Lm25000 Lm28000 Lm32000 Lm36000 Lm40000 Lm44000 Lm50000 Lm57000 Lm62000 Lm
- OpticsDirectType IIType IIIType IV
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyDLC*
- EnvironmentIP66Corrosion Resistant
- Mounting TypePole/Mast ArmPole/Post TopWall Arm/CantileverRetrofitSlip Fitter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeP26
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
