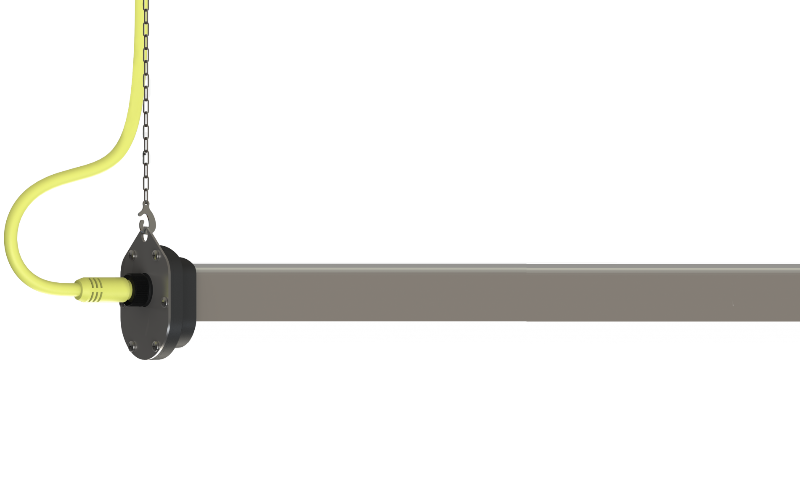

FPX. Linear Wash Down LED Luminaire for Task Lighting in Food Processing.
Configure
Add to project
RESOURCES
DESCRIPTION
The FPX is the most rugged, most efficient LED luminaire engineered specifically for task lighting applications in meat and poultry processing facilities. With a low profile at less than 2.5″, the seamless extruded housing is chemical resistant, NSF and IP69K rated, making it impenetrable during wash down. FPX meets all IES and USDA inspection standards for food processing illumination and is ideal for work stations, processing lines, wash down areas, de-boning stations, freezer tunnels, spiral coolers, slaughter and agricultural applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.38"L: 23.89"47.78"94.15"H: 2.38"
- Light SourceLED
- CCT/Color4000K5000K
- CRI85 90
- Watt(Approx)13.75 W/Ft18.75 W/Ft
- Lumens(Approx)1875 Lm/Ft2500 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance140000 h
- CertificatesUL/CULMade in USANSF
- EnvironmentIP69K High-Pressure/Steam-Jet Cleaning
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
