Gotham Lighting (Acuity Brands Lighting)

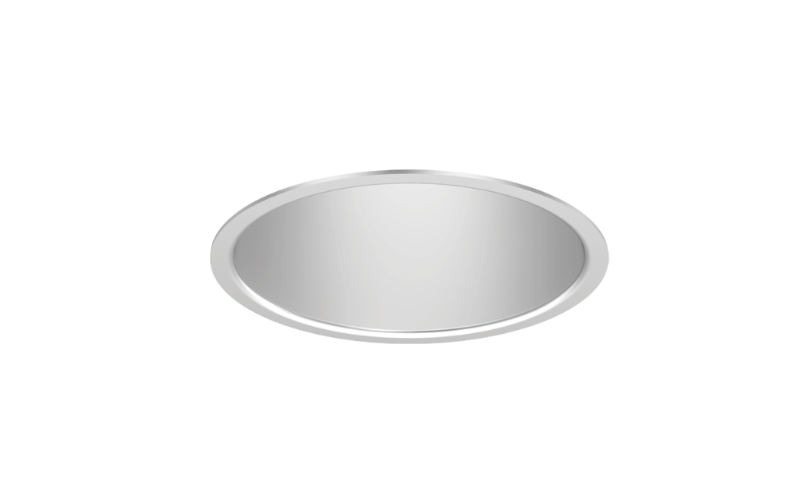

EVO4. EVO Architainment Color Downlight 4''.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
- Cutoff: 45°
- Functions: Open downlight
- Beam angles: Medium, medium wide, wide
- Trim options: Self-flanged, flangeless, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 250-4,500 LM
- Listings: Energy Star, UL, Wet Location
- Mainstream Dynamic Lighting: nTune, WarmDim, Architainment (RGBW)
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
- Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular, matte diffused, and specular
- Optics: Easy field-interchangeable optics
- Trims: Easy field-interchangeable cone
- Ceiling types: Metal, wood, drywall, and suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/16"L: 4 5/16"
- Light SourceLED
- CCT/ColorRGBW
- CRI90
- Watt(Approx)31 W
- Lumens(Approx)1250 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance36000 h
- CertificatesCSA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingNew Construction
- Housing Depth6 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEVO-4-OPEN-ARTC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
