Gotham Lighting (Acuity Inc.)

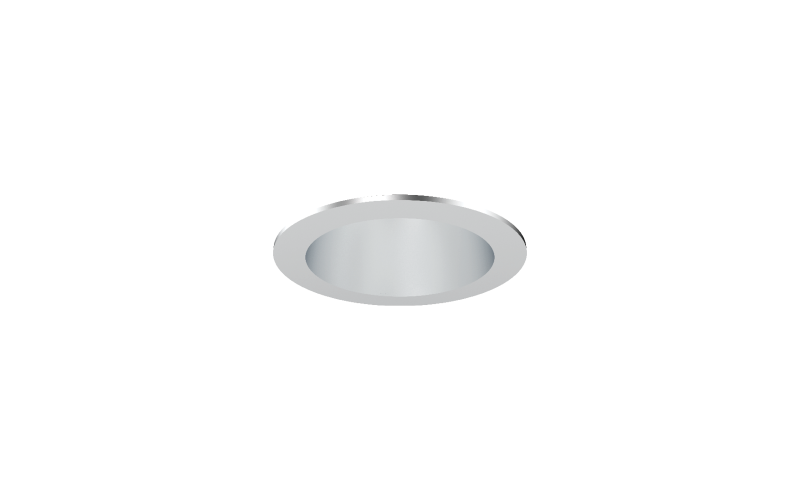

EVO2. Design Select EVO General Illumination Round Downlight 2”.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
- Cutoff: 45-50°
- Functions: Open downlight
- Beam angles: Narrow, medium wide, and wide
- Trim options: Self-flanged, flangeless, hyperbolic
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 250-2,000 LM
- Listings: Energy Star, UL, Damp Location, Wet Location
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular, matte diffused, and specular
- Optics: Easy field-interchangeable optics
- Trims: Minimal 3/8” trim flange
- Ceiling types: Metal, wood, drywall, and suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/4"L: 2 1/4"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80 90
- Watt(Approx)3.4 W6.3 W9.7 W12.7 W21.2 W31.7 W
- Lumens(Approx)265 Lm540 Lm802 Lm1073 Lm1537 Lm2094 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USABAA
- EnvironmentWet
- Mounting TypeCeiling SurfaceDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth7 1/4 ''
