Gotham Lighting (Acuity Brands Lighting)

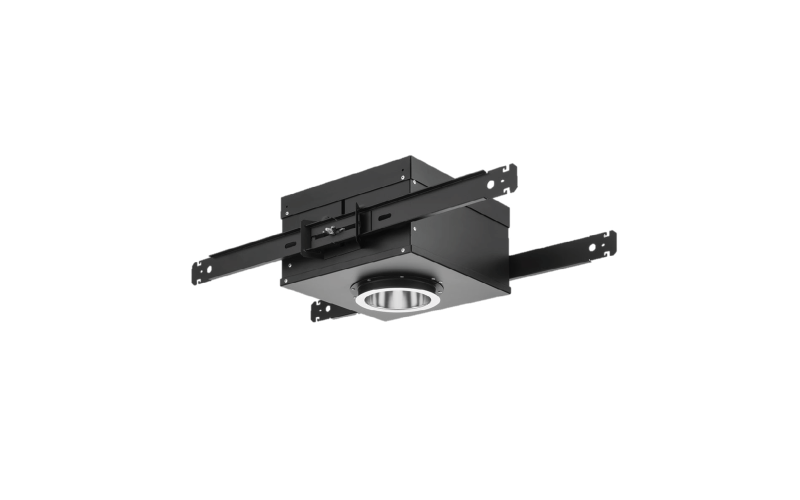

EVO4M. EVO General Illumination MRI Downlight 4”.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surface to create smooth edges and an even layer of light without hot spots or rings.
- Cutoff: 45°
- Functions: Open, corner, and double wall wash solutions
- Beam angles: Medium, medium wide, and wide
- Trim options: Flushed or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 250-4,500 LM
- Listings: UL, Wet Location, IP64, IP65, IP66 NSF2 Non-Food/Splash Zone
- Mainstream Dynamic Lighting: nTune, WarmDim
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
- Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular, matte diffused, and specular
- Optics: Easy field-interchangeable optics
- Trims: Easy field-interchangeable cone
- Color: Multiple powder paint options and antimicrobial paint finish available
- Ceiling types: Metal, wood, drywall, and suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/16"L: 4 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)3.1 W7.2 W7.9 W8.8 W13.7 W19.5 W25.7 W
- Lumens(Approx)217 Lm433 Lm650 Lm843 Lm1281 Lm1684 Lm2165 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishMRIWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth6 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEVO4M
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
