Gotham Lighting (Acuity Brands Lighting)

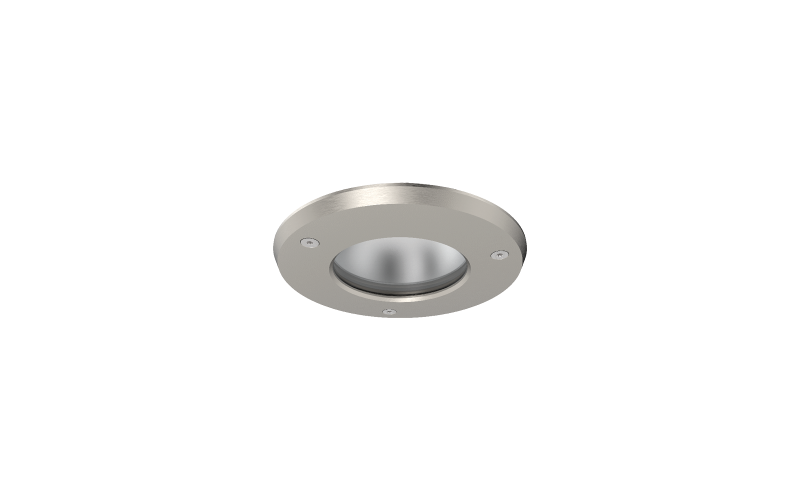

ICO2VR. Incito High Center Beam Round Vandal/Tamper Resistant Downlight 2”.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
- Functions: Open downlight
- Beam angles: Ranging from 15° to 45°, 35°x15°, 50°x20°, 50°x60°, 60°x70°
- Trim options: Solite pattern lens, light frost lens, or clear
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 250-2,000 LM
- Listings: Energy Star, UL, Wet Location, IP66, IC Rated
- Driver capabilities: Up to 2 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Optics: Easy field-interchangeable optics
- Trims: Minimal 3/8” trim flange
- Mounting: IK10 impact resistant construction with 1/4”polycarbonate lens
- Ceiling types: Metal, wood, drywall, and suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/4"L: 2 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)3.1 W5.6 W8.6 W12 W19.7 W28.4 W
- Lumens(Approx)192 Lm408 Lm626 Lm857 Lm1285 Lm1623 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USABAA
- EnvironmentIP66Vandalproof
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth5 1/8 ''7 3/16 ''6 1/8 ''
