Gotham Lighting (Acuity Brands Lighting)

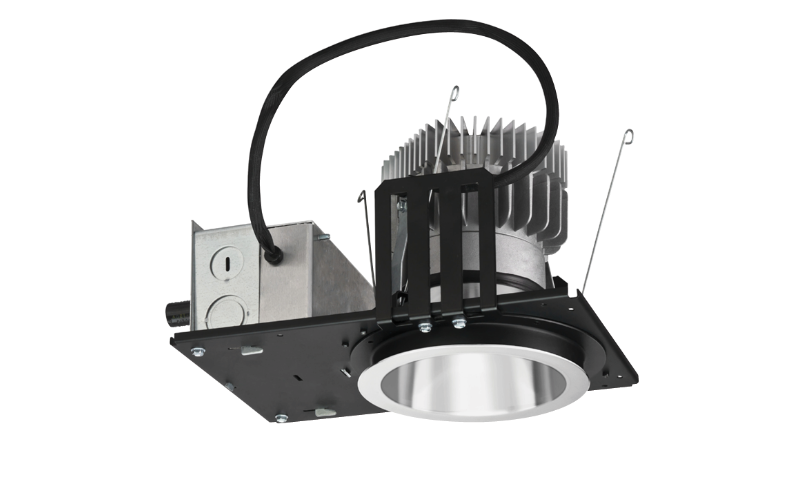

ICO4. Incito High Center Beam Round Downlight 4”.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
- Cutoff: 45°
- Functions: Open downlight
- Beam angles: Ranging from 10° to 65°
- Trim options: Self-flanged or flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 500-5,000 LM
- Listings: Energy Star, UL, Wet Location, Buy American
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
- Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular and matte diffused
- Optics: Easy field-interchangeable optics
- Trims: Easy field-interchangeable cone
- Ceiling types: Metal, wood, drywall, and suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/16"L: 4 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)6.7 W7.5 W9.8 W15.1 W21.5 W26.5 W34.1 W33.8 W39.5 W46.2 W53.2 W
- Lumens(Approx)703 Lm807 Lm1062 Lm1545 Lm1977 Lm2419 Lm2920 Lm3548 Lm3982 Lm4419 Lm4848 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED POWER DMX/RDMeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHSBAA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth6 ''7 ''8 ''8 11/16 ''
