Gotham Lighting (Acuity Brands Lighting)

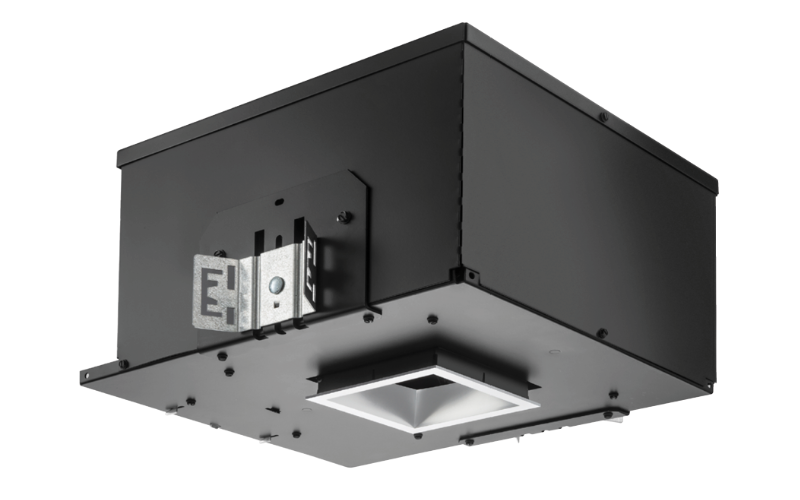

ICO4SQADJ. Incito High Center Beam Square Recessed Adjustable 4”.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
- Cutoff: 45°
- Functions: Adjustable solution
- Beam angles: Ranging from 10° to 50°
- Trim options: Self-flanged or flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 500-5,000 LM
- Listings: Energy Star, CSA, Wet Location, Buy American
- Driver capabilities: Up to 9 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular and matte diffuse
- Optics: Easy field-interchangeable optics
- Trims: Interchangeable open trim
- Ceiling types: Metal, wood, drywall, suspended grid ceilings
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/16"L: 4 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)6.7 W7.5 W9.8 W15.1 W21.5 W26.5 W34.1 W33.8 W39.5 W46.2 W53.2 W
- Lumens(Approx)568 Lm653 Lm859 Lm1250 Lm1599 Lm1956 Lm2362 Lm2870 Lm3221 Lm3574 Lm3921 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)eldoLED POWER DMX/RDMeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSAEnergy Star*RoHSBAA
- EnvironmentAntimicrobial Finish
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeICO4SQADJ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
