Gotham Lighting (Acuity Brands Lighting)

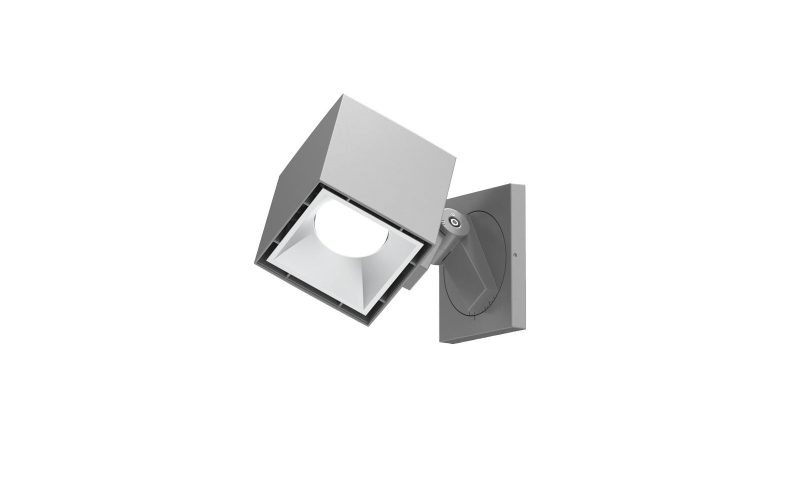

IVO4SQCYL. IVO 4'' Square Cylinders Wall Mount.
Configure
Add to project
RESOURCES
DESCRIPTION
OPTICS
PERFORMANCE
DESIGN
- Introducing our new perfect color consistency as a standard option which will lead the industry with a 0.5-step MacAdam ellipse from fixture to fixture
- Proprietary optics coupled with an advanced light engine and Bounding Ray™ Optical Design delivers a true uniformed, batwing distribution for smooth illumination and a comfortable experience for occupants in the space
- IVO™ batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings
- Cutoff: 65°
- Functions: Downlight and lensed wall washer
- Beam angles: Medium, Medium Wide, Wide
- Trim options: Cone and lensed wall wash
PERFORMANCE
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 500-3000 LM
- Listings: Energy Star, CSA, Damp Location, Wet Location
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
DESIGN
- Interchangeable trims and optics are designed for field-serviceability from below the ceiling with our twist and lock mechanism that enables adaptability on the job and accommodates design changes
- For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design
- Colors: 20 standard colors and full breath of RAL custom colors
- Up only or down only cylinder orientations available.
- Adjustable cylinder tilts -20D to +40D and rotates +/- 40D
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/2"L: 5 1/2"H: 5 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)5.1 W7.3 W9.8 W15 W20.5 W26.8 W29.7 W34.4 W41.8 W45.3 W
- Lumens(Approx)518 Lm773 Lm1041 Lm1562 Lm2069 Lm2571 Lm2872 Lm3482 Lm3990 Lm4452 Lm
- OpticsDirectIndirectNarrowMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%ELV/Reverse/Trailing0-10VDALIeldoLED ECO 0-10VDMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesCSA
- EnvironmentAntimicrobial FinishDampWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
