GVA Lighting

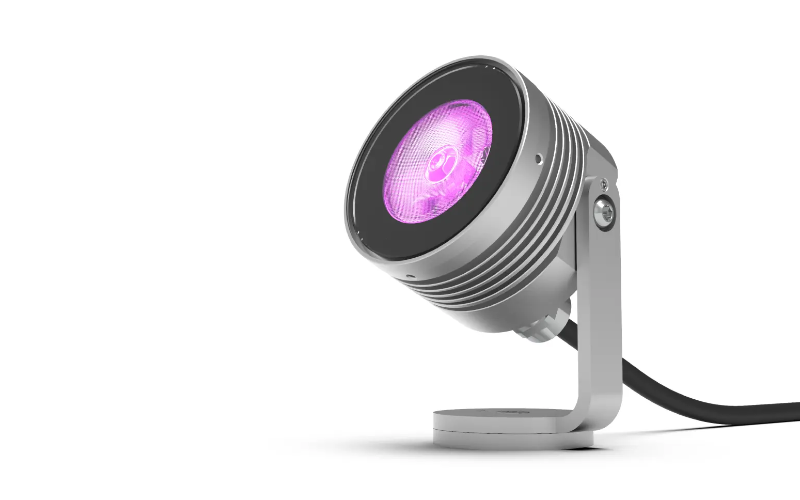

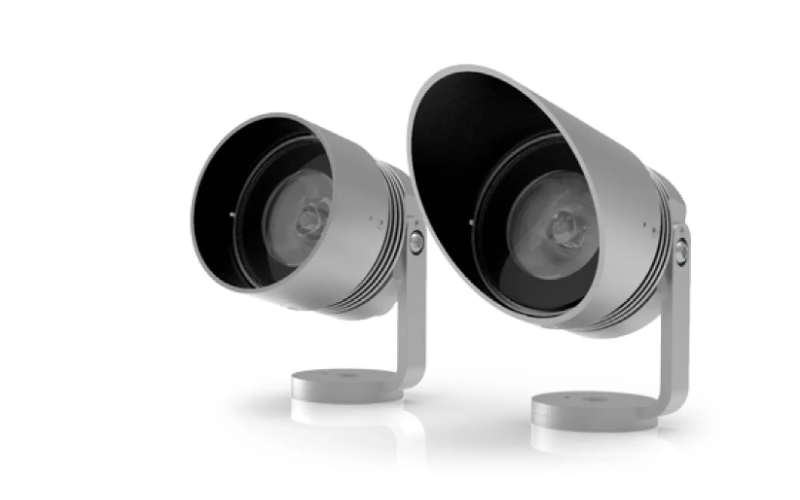

LIRA. RGBW Architectural Spot and Flood Light.
 Configure
 Add to project
DESCRIPTION
  • Hermetically Sealed Glass Assembly
  • Machined and Architectural Anodized Aluminum Body
  • Optically Clear Tempered Glass Lens
  • 360° Horizontal Rotation
  • 200° Vertical Rotation
  • Extremely Compact with a Diameter of 73 mm
  • Leader cable manufactured with proprietary moisture blocking design
  • Outdoor burial or outdoor exposed cable options available for landscape projects
  • COLOR-AMP® Technology allows up to 3x higher light output
  • LED Color Match with STR9® RGBW
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.85"
    L: 2.87"
    H: 2.76"3.94"5.91"
  • Light Source
    LED
  • CCT/Color
    RGBWRGBA
  • CRI
  • Watt(Approx)
    10 W
  • Lumens(Approx)
    420 Lm
  • Optics
    DirectGrazingNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%DMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULRoHS
  • Environment
    IP66
  • Mounting Type
    Yoke
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
