GVA Lighting

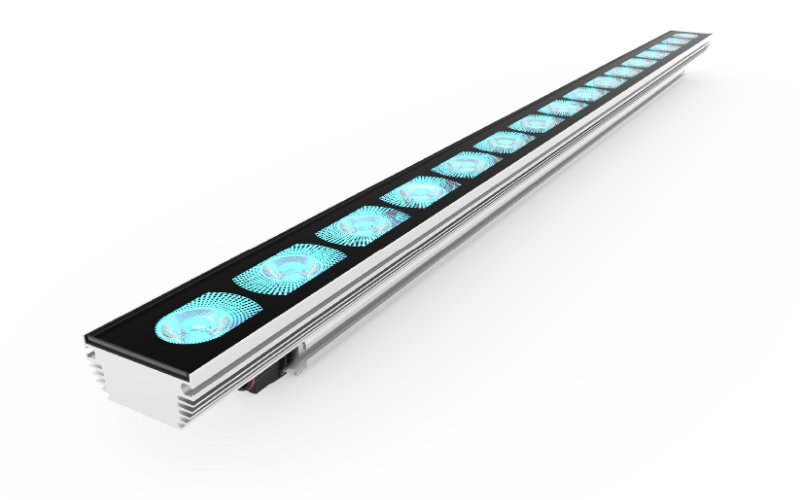

STR9-G3. GEN3 Color Changing Linear Wall Washing and Grazing LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Up to 2,040 Delivered Lumens /m (626 lm/ft)
- 3 Voltage Options: AC Line voltage, ELV 48VDC, INFINITY® 380VDC
- LED Pitch Maintained Within and Between Luminaires
- Optically Clear Tempered Glass Lens
- Versatile Mounting Slot for Array of Mounting Options
- 300 mm (1 ft) Addressability
- Compact and Lightweight
- INFINITY® Technology enables exceptionally long lighting circuits
- Color Match with FL Series RGBW-IM
- UNIBODY™ Technology for industry-leading proprietary sealing against water ingress
- Color-mixing inside the optics and diffusing film creates uniform light adjacent to the luminaire
- Excellent LED to LED color consistency
- Through-wiring for end-to-end connection and plug-and-play with FL Series
- RGBA, RGB, or RGBW30K LED color combinations
- COLOR-AMP® Technology allows up to 3x higher light output
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.8"L: 11.73"23.54"35.35"47.17"58.98"H: 2.5"
- Light SourceLED
- CCT/ColorRGBRGBWRGBA
- CRI
- Watt(Approx)10 W/Ft15 W/Ft20 W/Ft
- Lumens(Approx)392 Lm/Ft495 Lm/Ft608 Lm/Ft
- OpticsDirectGrazingNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULRoHS
- EnvironmentIP66
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSTR9-G3-CC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
