Hadco (Signify)

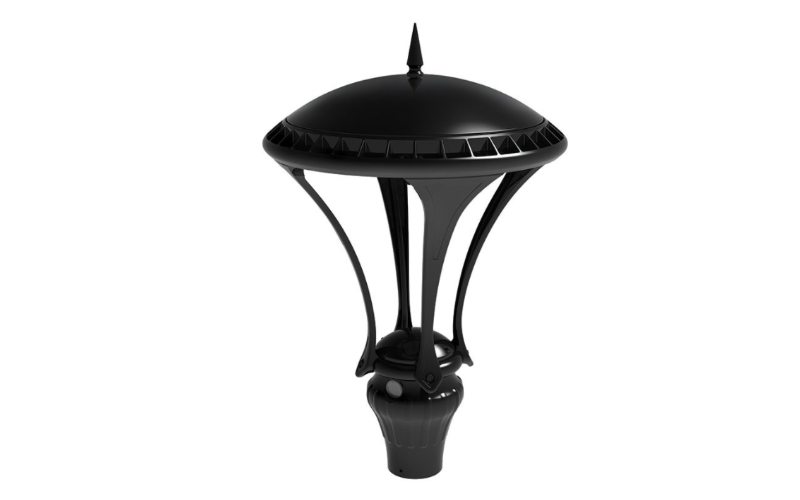

UX1. Post top Landscape LED - Generation 3.
Configure
Add to project
RESOURCES
DESCRIPTION
The Hadco LED post top UX1 luminaire offers a simple modern take on the traditional lantern, providing style and elegance to downtown areas, commercial developments, parks and residential communities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18"L: 18"H: 28.1"
- Light SourceLED
- CCT/Color3000K4000K
- CRI75
- Watt(Approx)71 W106 W138 W
- Lumens(Approx)106 Lm7126 Lm7751 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLDLC*RoHS
- EnvironmentIP66
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeUX1-G3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
