Hydrel (Acuity Brands Lighting)

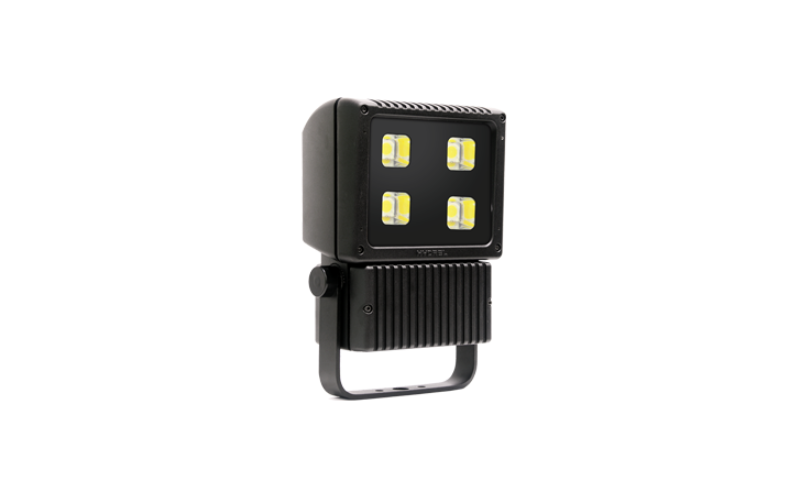

8100. LED FLOOD Limited Wavelength Amber Yoke Mount.
Configure
Add to project




RESOURCES
DESCRIPTION
Hydrel 8100 Series LED floods are designed to provide long-lasting, energy efficient illumination even in the most demanding environments. Ready to withstand the rigors of weather, high pressure sprinkler heads, corrosive fertilizers and even lens impacts that would destroy most products, Hydrel 8100 Series LED floods are particularly suited for ground mounted, upwardly aimed applications. With an expected service life of over 100,000 hours, Hydrel 8100 Series LED floods avoid the multiple lamp changes associated with HID sources. A precision optical system provides controlled beam angles with excellent uniformity and superior glare control for effective floodlighting. Generating up to 18,000 lumens, the Hydrel 8100 LED flood can easily replace a 400W metal halide flood, saving 65% in energy costs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/8"L: 10"H: 12 1/4"
- Light SourceLED
- CCT/ColorYellow/Amber
- CRI
- Watt(Approx)38 W
- Lumens(Approx)1408 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesCSABAA
- EnvironmentIP67
- Mounting TypePole/Mast ArmPole/Post TopGround Spike/StakeWall SurfaceSurfaceYokeTree Strap
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
