Hydrel (Acuity Brands Lighting)

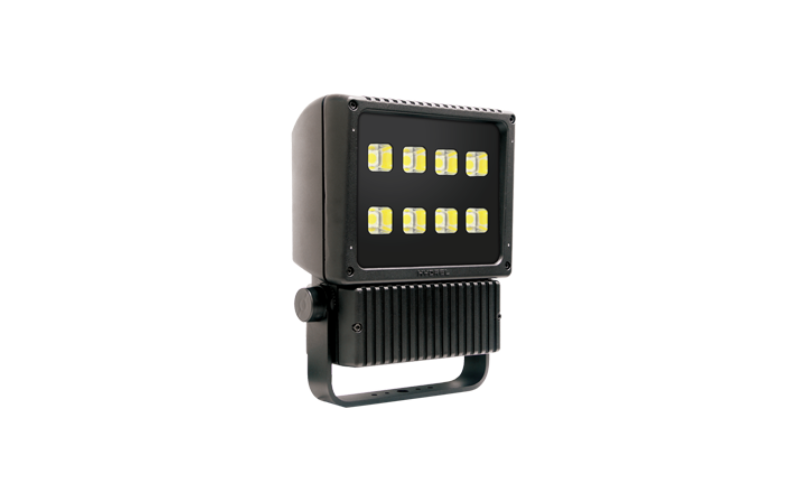

8200. LED FLOOD Limited Wavelength Amber Yoke Mount.
 Configure
 Add to project
DESCRIPTION
Hydrel 8200 Series LED floods are designed to provide long-lasting, energy efficient illumination even in the most demanding environments. Ready to withstand the rigors of weather, high pressure sprinkler heads, corrosive fertilizers and even lens impacts that would destroy most products, Hydrel 8200 Series LED floods are particularly suited for ground mounted, upwardly aimed applications. With an expected service life of over 100,000 hours, Hydrel 8200 Series LED floods avoid the multiple lamp changes associated with HID sources. A precision optical system provides controlled beam angles with excellent uniformity and superior glare control for effective floodlighting. Generating up to 35,000 lumens, the Hydrel 8200 LED flood can easily replace over a 1000W metal halide flood, saving 66% in energy costs.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7 1/4"
    L: 15 3/4"
    H: 20 3/4"
  • Light Source
    LED
  • CCT/Color
    Yellow/Amber
  • CRI
  • Watt(Approx)
    77 W
  • Lumens(Approx)
    3069 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V480V
  • Integral Emergency
  • Lumen Maintenance
    100000 h
  • Certificates
    CSABAA
  • Environment
    IP67
  • Mounting Type
    Pole/Mast ArmPole/Post TopWall Arm/CantileverYokeSlip FitterTenon AdapterGround Arm/Stanchion
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
