Hydrel (Acuity Brands Lighting)

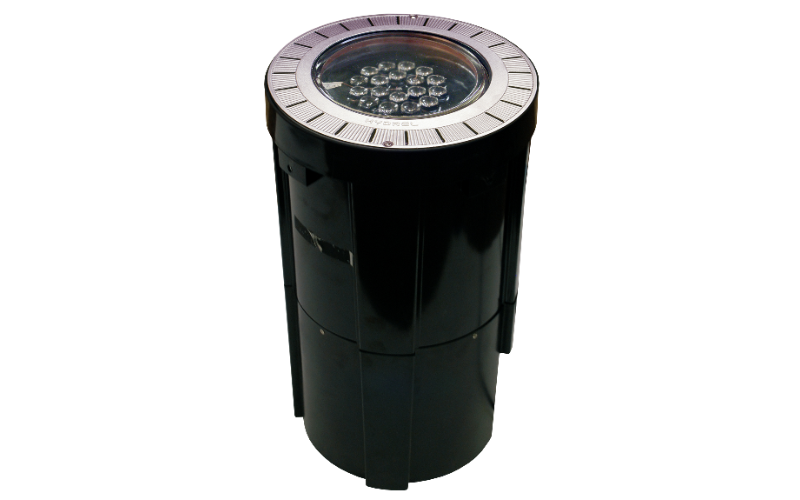

M9700. RGBW LED Color Changing In-Grade Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
Add relaxing beauty to ponds, fountains, and landscapes with color-changing in-grade luminaries. The M9700 LED RGBW modular in-grade is a multi-purpose luminaire designed for flush mounting in various substrates or materials. Uplight architectural columns and landscape features with dynamic color.
- Customize RGBW color combinations to suit any lighting design application.
- Optical and mechanical aiming with an optional double lens
- Optimal efficiency through photometric improvements
- DMX Controller, RDM available
- Flow-Thru technology
- IK08 with IK10 option available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12"L: 12"
- Light SourceLED
- CCT/ColorRGBW
- CRI80
- Watt(Approx)22 W
- Lumens(Approx)1279 Lm1162 Lm1890 Lm1809 Lm2054 Lm2318 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesCSABAA
- EnvironmentIP68
- Mounting TypeIn-GradeConcreteGround
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeM9700-RGBW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
