Hydrel (Acuity Brands Lighting)

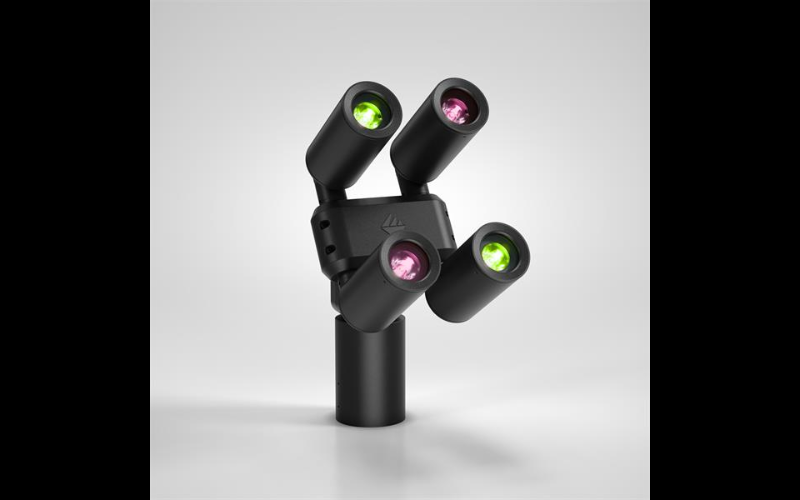

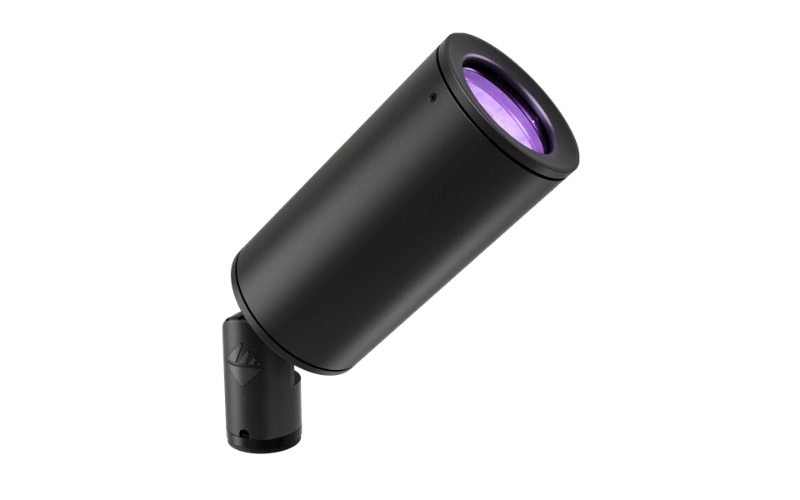

SAF1. SPECIALTY ARCHITECTURAL FLOOD MVOLT LED RGBW.
Configure
Add to project
RESOURCES
DESCRIPTION
SAF1 RGBW joins the Accent Landscape luminaire family and the SAF Architectural Floodlight Family. It is an IP-66 rated luminaire for lighting landscapes, trees, columns, monuments, and architectural details.
- Spot, accent, landscapes & flood beam angles from 10° to 70°, 100°, Elliptical: 15°x60° & 30°x60°
- High color performance, with no color separation with Quad Tech
- DMX with RDM option
- Taper-Lock technology provides full aiming integrity utilizing a rugged knuckle design
- 3G vibration rating per ANSI C136.31
- RGBW3 and RGBW4
- Up to 350 delivered lumens
- IP66 rated
- IK option available
- Mounting accessories including ground, wall, pole, stanchion, and tree
- Available in a range of colors and finishes
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.6"L: 3.6"H: 9.18"10.18"12.661"
- Light SourceLED
- CCT/ColorRGBW
- CRI80
- Watt(Approx)24 W
- Lumens(Approx)277 Lm233 Lm347 Lm346 Lm336 Lm334 Lm309 Lm320 Lm310 Lm
- OpticsDirectGrazingNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmPole/Post TopWall SurfaceWall Arm/CantileverKnuckleGround SurfaceOutdoor JBOX
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSAF1-RGBW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
