Hydrel (Acuity Inc.)

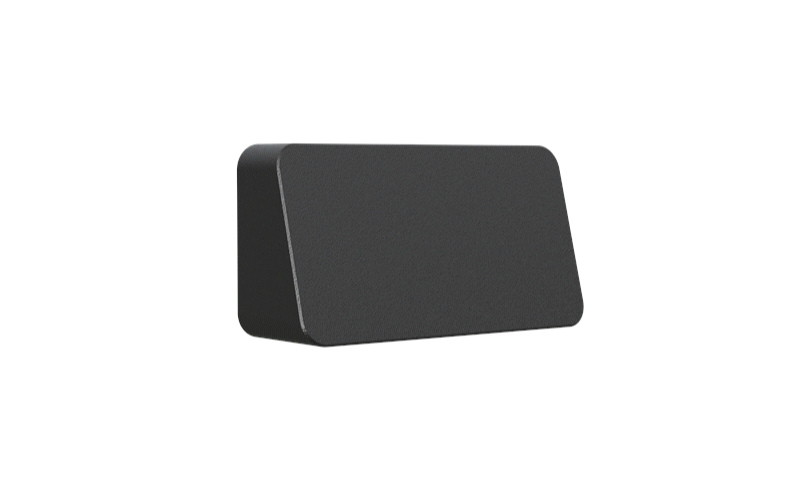

WANDER3. WANDER Pathway and Step Light Family Surface Mount.
Configure
Add to project
RESOURCES
DESCRIPTION
Wander is a broad family of luminaires offering multiple mounting options, including pedestal, semi-recessed, and surface mounts, that provide visual continuity for pathways, step, and wall lighting applications.
The surface-mount luminaire is uniquely designed to provide a wide lateral distribution of up to 16 feet on-center fixture spacing at only 18" mounting height, providing a one-of a-kind lighting spread and smoothness.
The Wander surface-mount is designed for retrofit applications.
The surface-mount luminaire is uniquely designed to provide a wide lateral distribution of up to 16 feet on-center fixture spacing at only 18" mounting height, providing a one-of a-kind lighting spread and smoothness.
The Wander surface-mount is designed for retrofit applications.
- Proprietary precision acrylic optics available in three tailored distributions
- Can be mounted downward facing for pathway, building perimeter, and step lighting or upward facing for indirect lighting applications
- Up to 1000 delivered lumens
- Sturdy die-cast body with IK10 Impact Rating
- Mounts to standard 4" octagonal j-box (provided by others)
- Integral Driver
- 3G vibration rating per ANSI C136.31
- 0-10V dimming or Reverse phase
- Static white, Amber 590nm and Monochromatic colors
- BUG U0
- IP66 rated
- ADA Compliant
- Available in a range of colors and finishes
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.73"L: 8.6"H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KYellow/AmberRedGreenBlue
- CRI90
- Watt(Approx)12.7 W
- Lumens(Approx)1200 Lm
- OpticsDirectArea Forward Throw
- Adjustable
- DimmingDim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSAADABAA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWANDER3-SM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
