Healthcare Lighting (Acuity Brands Lighting)

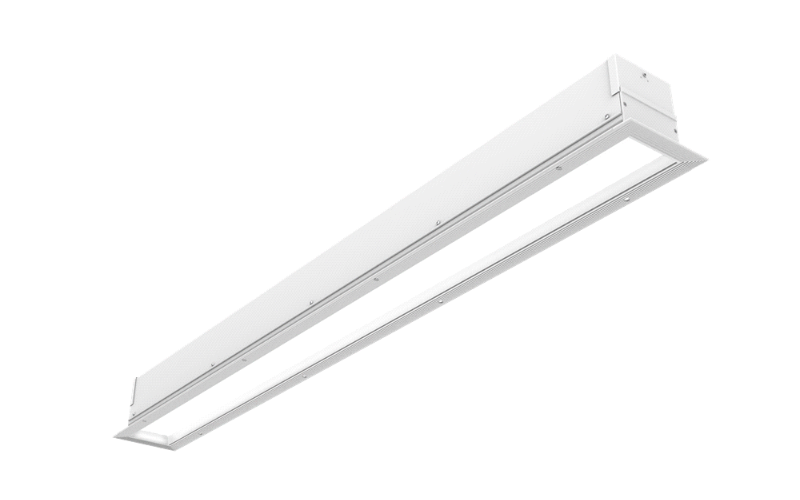

HPL. Secondary Color Recessed Static White Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
A recessed luminaire with asymmetric and symmetric distribution, HPL synergizes architectural form with multi-modal function. As a step away from bulky, headwall fixtures, HPL is a recessed fixture that delivers single and multi-modal functionality for patient rooms, healthcare hallways, common areas, and exam or procedure rooms.
2 ft., 3 ft., 4 ft., 6 ft., and 8 ft. lengths Up to 115 lumens per watt IP64 rating nLight® wired and wireless controls Grid, mud-in flangeless, and drywall flange mounting options.
2 ft., 3 ft., 4 ft., 6 ft., and 8 ft. lengths Up to 115 lumens per watt IP64 rating nLight® wired and wireless controls Grid, mud-in flangeless, and drywall flange mounting options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.32"4.42"3.69"L: 2 Ft3 Ft4 Ft6 Ft8 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/AmberRedGreen
- CRI90
- Watt(Approx)6 W/Ft8 W/Ft11 W/Ft13 W/Ft
- Lumens(Approx)694 Lm/Ft962 Lm/Ft1269 Lm/Ft1574 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALI
- Controls/NetworknLight®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance83000 h
- CertificatesCSANSFDeclareBAA
- EnvironmentAntimicrobial FinishWetPatient Room
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHPL-SC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
