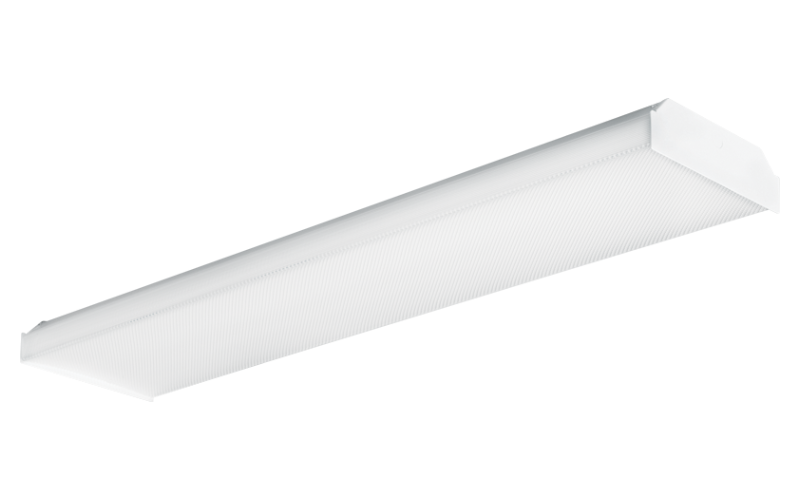

17. LED Low-Profile Wrap.
Configure
Add to project
RESOURCES
DESCRIPTION
- Low-profile wrap-around provides uniform downward light distribution and subtle side illumination
- Shallow depth provides low-profile appearance
- Mounts easily as a single fixture or in continuous row installations
- Diffuser is secured continuously along luminaire sides
- Wireway is accessible without the use of tools
- High-performance up to 141 lm/W
- 2', 4', and 8' lengths available
- Variety of mounting options for surface or suspended applications
- Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10 3/4"L: 2 Ft4 Ft8 FtH: 3 1/16"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)21.3 W42.3 W78.3 W
- Lumens(Approx)2915 Lm5947 Lm11065 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
