H. E. Williams, Inc.

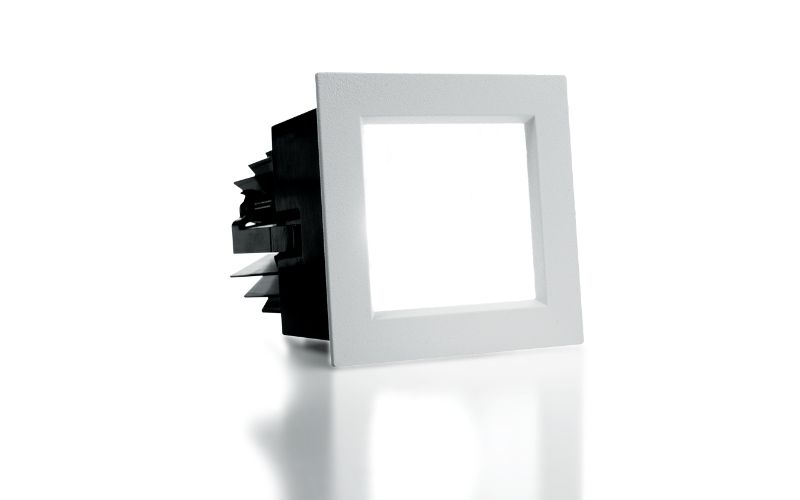

2DS. 2″ Downlight – Square LED | Tunable White.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2" aperture is unobtrusive in small scale spaces
- Beam angles ranging from 14º spot to 50º wide for tailored performance
- Zero-flange trim options for modern ceiling

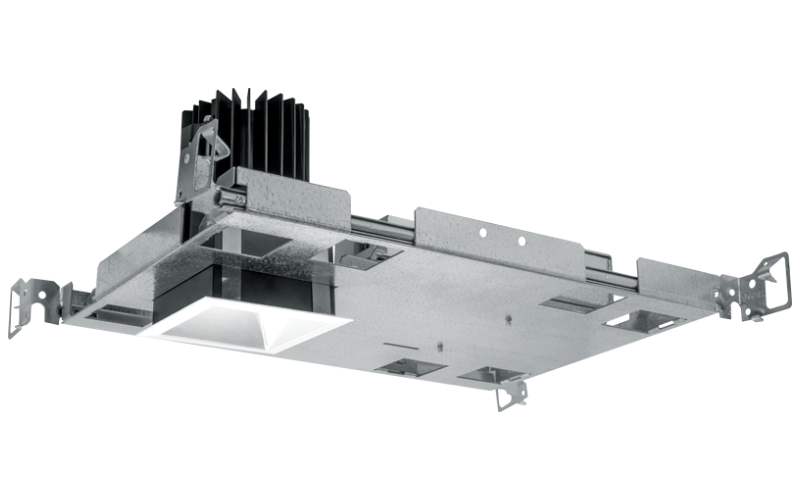

- New construction mounting pan, IC-rated, or pan-less remodel kit available
- Contemporary design provides glare-free illumination for a soft ceiling appearance
- Die-cast trim includes flush, regressed or angled lens
- Open reflector with seven finishes complements any interior style
- Spring clip retention system eliminates trim sag
- Square shape accentuates architectural styles
- Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
- Low UGR meets LEED and WELL requirements
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 11/16"L: 2 11/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)6.7 W8.7 W10.7 W14.3 W17.7 W23.9 W29.9 W30.1 W
- Lumens(Approx)516 Lm725 Lm929 Lm1267 Lm1571 Lm2063 Lm2479 Lm2858 Lm
- OpticsDirectMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesCSAMade in USARoHSBAA
- EnvironmentAntimicrobial FinishDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelAir Tight
- Housing Depth5 ''5 13/16 ''6 1/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time2DS-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
