H. E. Williams, Inc.

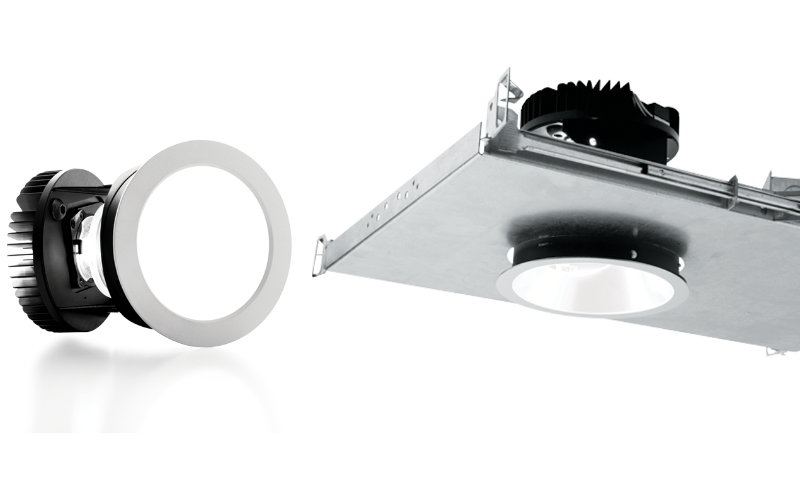

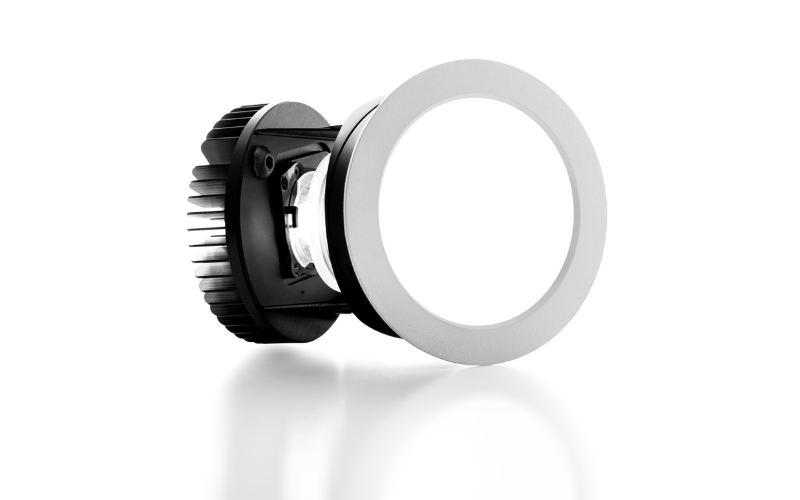

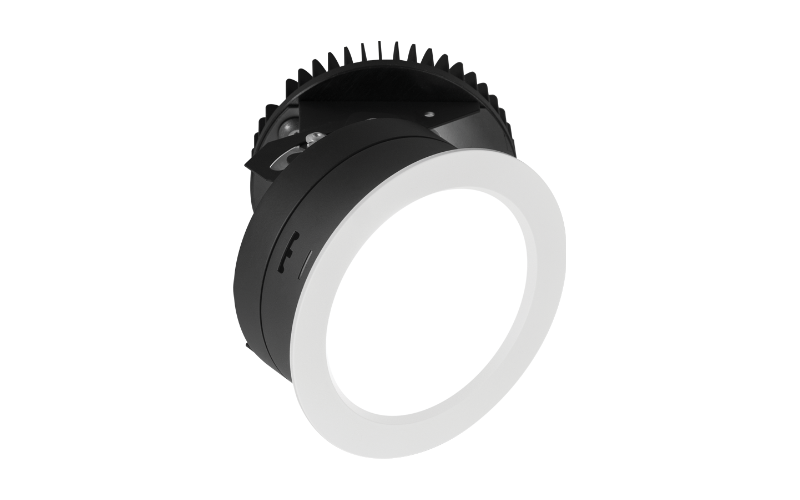

4AR. 4.5” Adjustable Downlight – Round LED | Tunable White.
 Configure
 Add to project
H. E. Williams, Inc.. 4AR. 4AR tunable WHITE 4.5” Adjustable Downlight – Round.
H. E. Williams, Inc.. 4AR. 4AR tunable WHITE 4.5” Adjustable Downlight – Round.
H. E. Williams, Inc.. 4AR. 4AR tunable WHITE 4.5” Adjustable Downlight – Round.
H. E. Williams, Inc.. 4AR. 4AR tunable WHITE 4.5” Adjustable Downlight – Round.
RESOURCES
DESCRIPTION
  • Adjustable aim with 0° - 45° tilt and 360° rotation
  • Etched degree markers and directional indicator make it simple to fine-tune the illumination angle
  • Beam angles ranging from 20º narrow to 45º wide for tailored performance
  • 4 inch aperture is unobtrusive in small scale spaces
  • New construction mounting pan, IC-rated, or pan-less remodel kit available
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • Choice of open reflector or die-cast lensed trims to complement interior style
  • Spring clip retention system eliminates trim sag
  • Fully room-side accessible
  • Low UGR meets LEED and WELL requirements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: 6" or less
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    12.1 W17.2 W24 W36.9 W49 W
  • Lumens(Approx)
    1014 Lm1529 Lm2028 Lm2785 Lm3714 Lm
  • Optics
    DirectNarrowMediumWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USARoHSBAA
  • Environment
    Antimicrobial FinishDampWet
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallT-Grid Ceiling
  • Housing
    New ConstructionICChicago PlenumRemodelAir Tight
  • Housing Depth
    5 3/8 ''6 3/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
