H. E. Williams, Inc.

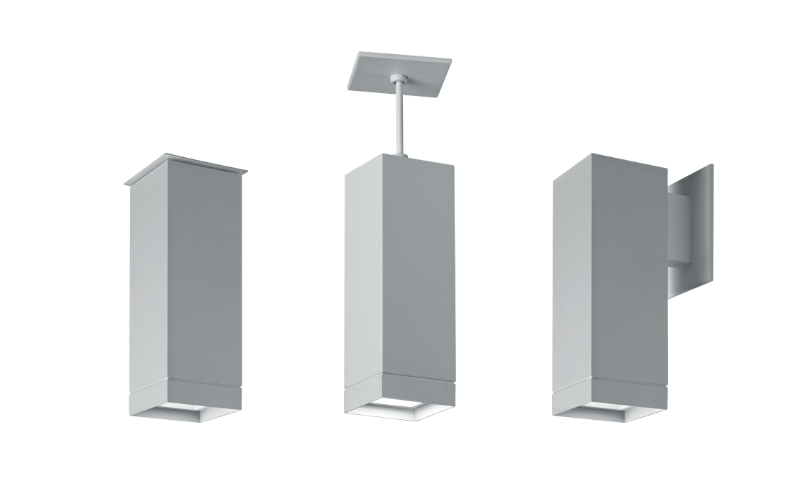

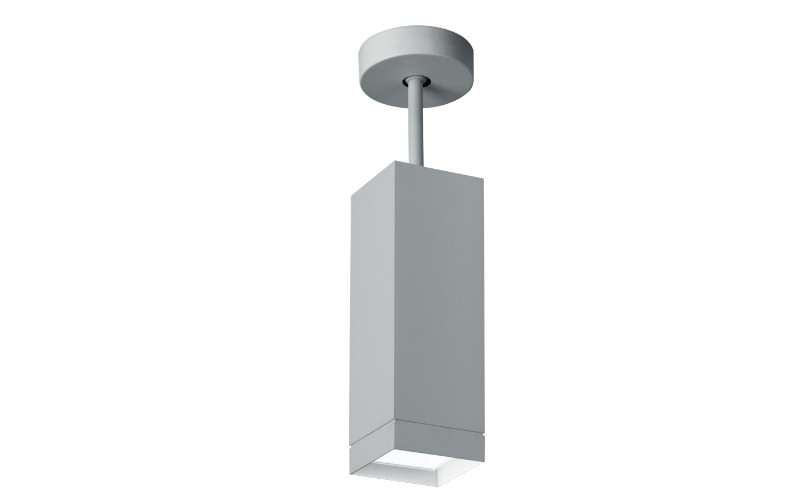

4CS. Dim to Warm 4″ Cylinder – Square.
 Configure
 Add to project
H. E. Williams, Inc..
H. E. Williams, Inc..
H. E. Williams, Inc..
H. E. Williams, Inc..
RESOURCES
DESCRIPTION
  • Slim profile for unobtrusive illumination
  • Parallel the performance and style of the Williams downlight collection
  • Superior optical control with beams as narrow as 14° and field changeable optics as wide as 50°
  • Complement the architectural elements of any space with a multitude of housing, trim and cord finishes
  • Comprehensive list of mounting options – pendant, cable, power cord, wall and ceiling
  • Ensure a simple and secure installation with TwistLock™ surface mount technology
  • Precision-engineered extruded aluminum housing and die-cast aluminum trim face for clean aesthetic
  • Variety of cord colors available in standard or braided for custom design
  • Open, flush, and regressed lens trim options
  • Reflectors create smooth, low-glare radiance
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Low UGR meets LEED and WELL requirements
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4 1/4"
    L: 4 1/4"
    H: 12 13/16"
  • Light Source
    LED
  • CCT/Color
    3000K Dim to Warm
  • CRI
    95
  • Watt(Approx)
    14.8 W23.3 W
  • Lumens(Approx)
    734 Lm1273 Lm
  • Optics
    DirectMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VLutron EcoSystem
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
  • Lumen Maintenance
    55000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    Damp
  • Mounting Type
    PendantCeiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
