H. E. Williams, Inc.
50. LED Static Troffer.
 Configure
 Add to project

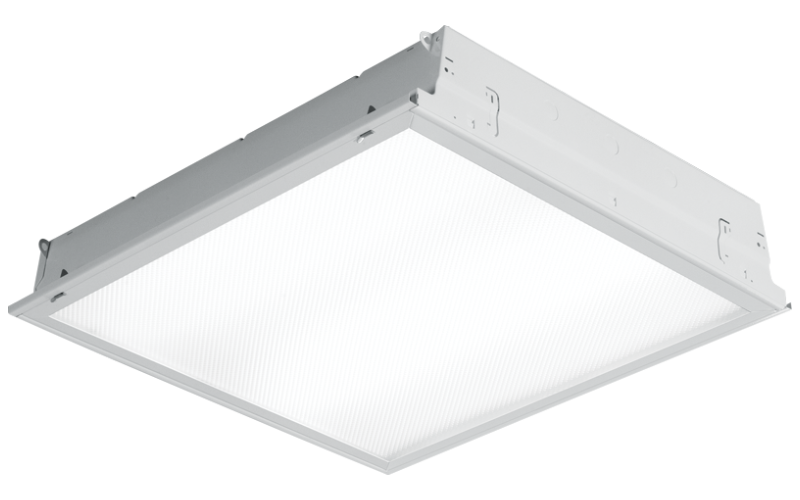

H. E. Williams, Inc.. 50. 50 LED Static Troffer.

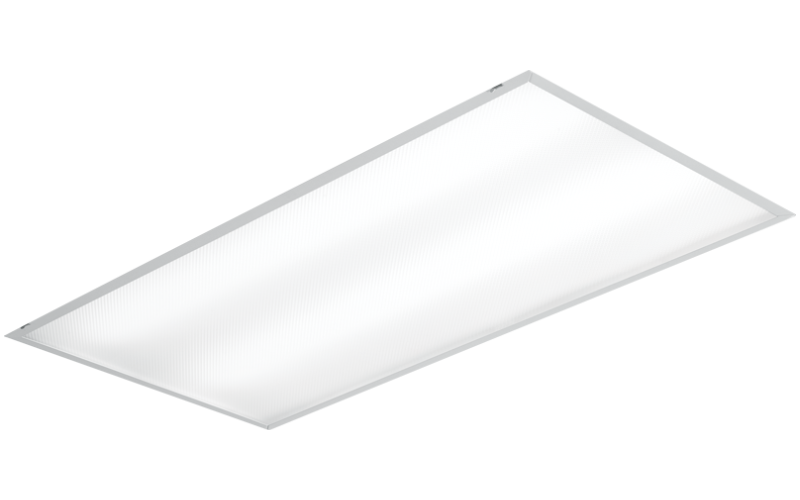

H. E. Williams, Inc.. 50. 50 LED Static Troffer.

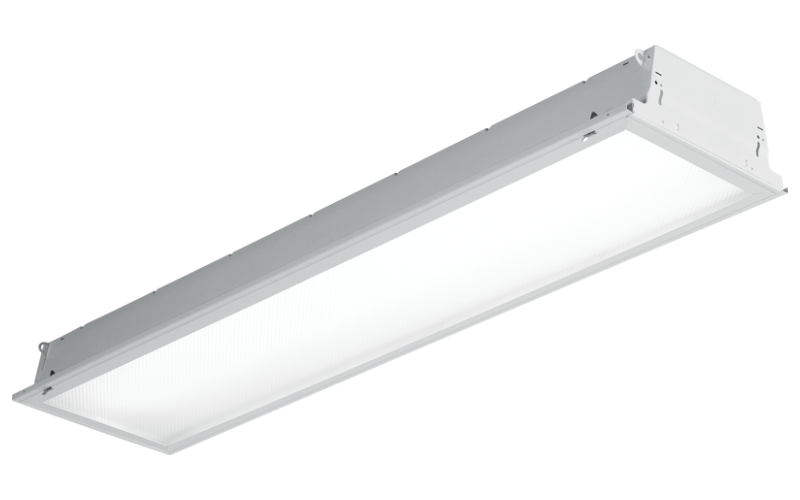

H. E. Williams, Inc.. 50. 50 LED Static Troffer.
H. E. Williams, Inc.. 50. 50 LED Static Troffer.
RESOURCES
DESCRIPTION
  • Frosted prismatic lens provides pleasing diffused light without LED pixelation
  • Fully-enclosed spring-loaded cam latches provide hassle-free room-side maintenance
  • Triple gasketing and inverted lens options for smooth surface room-side
  • T-slot steel hinge ensures positive retention when door is opened
  • Back reinforcement ribs and rolled-edge channel adds superior strength
  • Integral T-bar clips quickly secure fixture to structure (2x2 and 2x4 only)
  • High-performance up to 139 lm/W
  • IC-rated for direct contact with insulation
  • Fully gasketed door protects against contaminants
  • Optional tamper-resistant screws secure door frame
  • Variety of door frame and shielding options
  • Listed for wet location under covered ceiling option
  • Double and triple gasketing options
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    21.4 W26.3 W33.7 W48.4 W56.1 W72.4 W102.7 W
  • Lumens(Approx)
    2662 Lm2602 Lm4425 Lm4325 Lm3272 Lm6527 Lm5884 Lm9045 Lm13171 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    72000 h
  • Certificates
    ETLMade in USABAA
  • Environment
    DampWet
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    4 3/8 ''
