H. E. Williams, Inc.

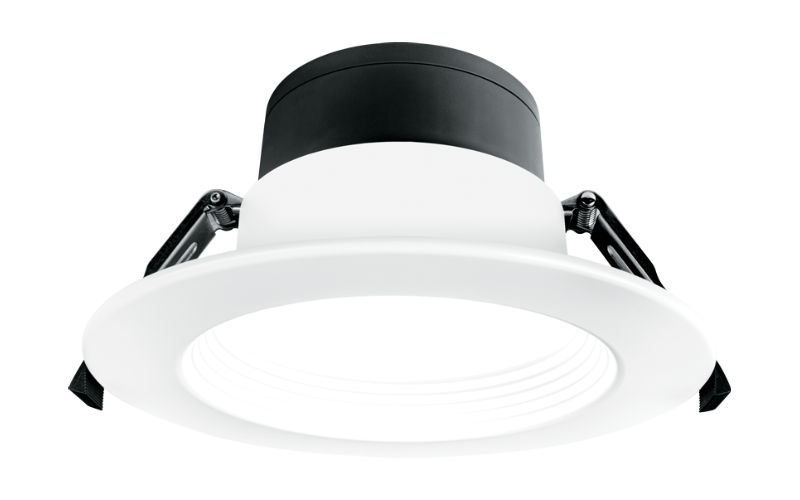

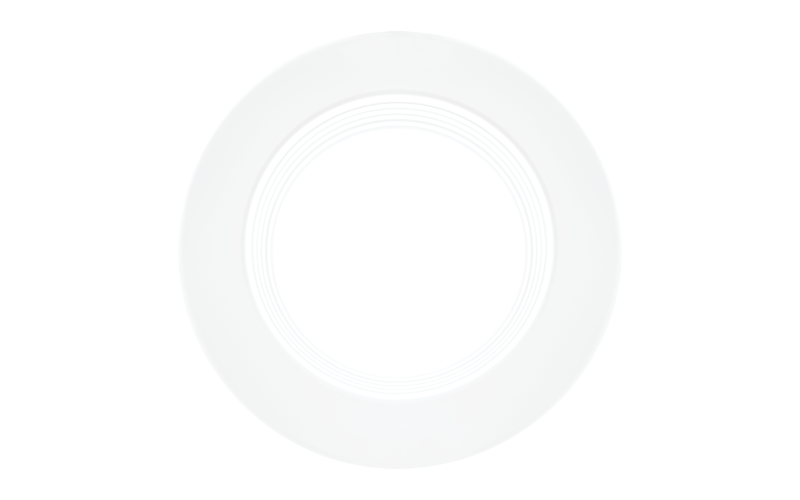

6RCD. FieldSELECT 6″ Round Commercial Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
- Available on QuickShip

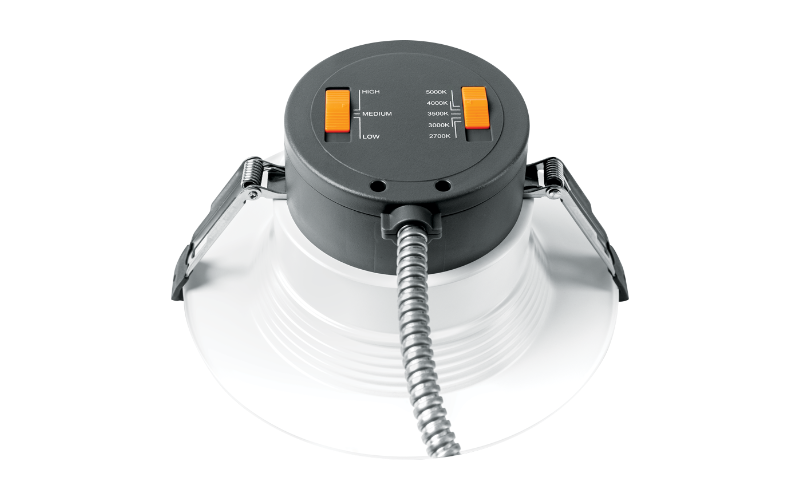

- Easily change between five color temperatures and three lumen outputs on-site with built-in switches
- Simple and quick installation in new construction, IC-rated, or remodel applications
- 90 CRI provides high-accuracy color rendering
- Durable spring clips secure fixture
- Suitable for wet locations under covered ceiling
- High efficacies up to 105 lm/W for greater energy savings
- Low UGR meets LEED and WELL requirements
- Easily change the color temperature on-site with FieldSELECT™
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8 7/16"L: 8 7/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)12.1 W17.3 W21.8 Wswitchable
- Lumens(Approx)1233 Lm1769 Lm2187 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance149000 h
- CertificatesCSA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICRemodel
- Housing Depth4 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time6RCD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
