H. E. Williams, Inc.

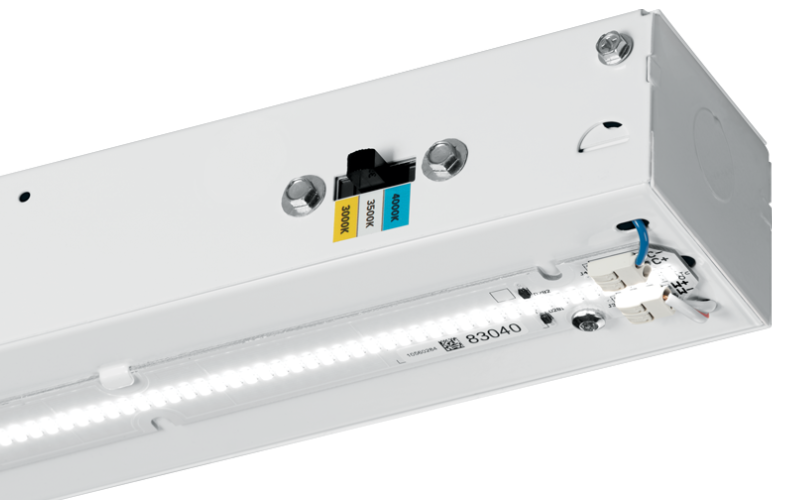

75. LED/Tunable White Narrow Strip.
Configure
Add to project




RESOURCES
DESCRIPTION
- Small profile allows inconspicuous placement in coves or confined spaces
- HE option delivers superior efficacies up to 192 lm/W
- Special reflectors are available to provide precise light distribution
- Variety of surface and suspended mounting accessories
- Row applications produce continuous light with minimal interruption between fixtures
- Optional wireguard provides added protection
- Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
- 2', 3', 4', and 8' lengths available
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Quick-connect wiring options for continuous row mounting
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 3/4"L: 22 1/2"33 9/16"44 5/8"89 1/4"H: 2"
- Light SourceLED
- CCT/Color3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)10.8 W18.2 W19.7 W21.3 W28.2 W31.4 W33 W35.3 W43.6 W48.2 W42.3 W56.2 W68.3 W65.9 W85.9 W87.9 W112.4 W136.5 W171.7 W
- Lumens(Approx)1592 Lm2602 Lm3092 Lm4344 Lm4092 Lm3071 Lm6052 Lm6593 Lm5126 Lm6313 Lm5814 Lm8530 Lm10154 Lm12105 Lm10078 Lm13011 Lm17060 Lm20309 Lm24208 Lm
- OpticsDirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time75-TW
—
