H. E. Williams, Inc.

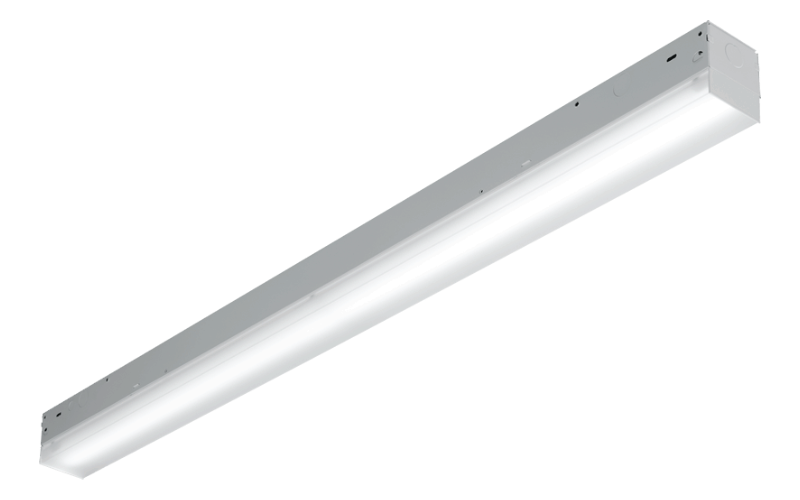

75S. Tunable RGBW Narrow Strip.
 Configure
 Add to project
H. E. Williams, Inc.. 75S. 75 Narrow Strip tunable WHITE.
H. E. Williams, Inc.. 75S. 75 Narrow Strip tunable WHITE.
H. E. Williams, Inc.. 75S. 75 Narrow Strip tunable WHITE.
RESOURCES
DESCRIPTION
  • Available on QuickShip
  • Diffuse acrylic lens enhances uniformity and minimizes glare
  • Square lens provide a clean look for architectural environments
  • Variety of surface and suspended mounting accessories
  • Small profile allows inconspicuous placement in confined spaces
  • Row applications produce continuous light with minimal interruption between fixtures
  • HE option delivers superior efficacies up to 182 lm/W

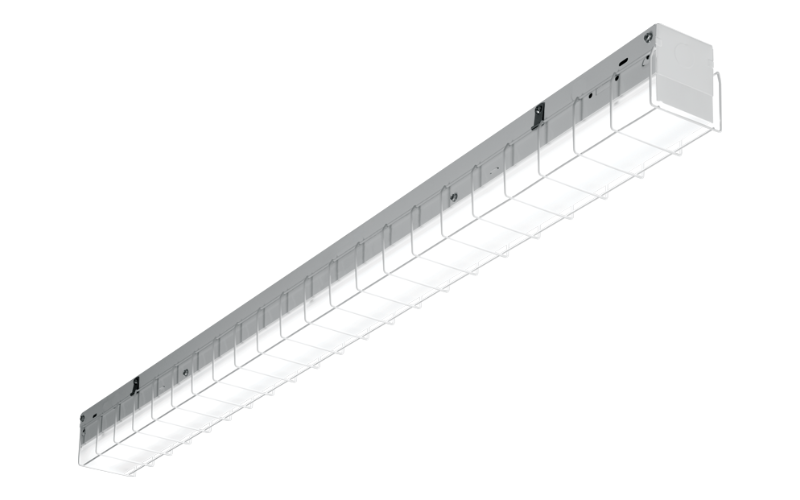

  • Optional wireguard provides added protection
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • 2', 3', 4', and 8' lengths available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Quick-connect wiring options for continuous row mounting
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Create rich, vibrant designs with lasting visual impact using the full visible light spectrum
  • DLC Compliant
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 3/4"
    L: 44-5/8″89-1/4″2
    H: 3"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KRGBRedGreenBlue
  • CRI
    80 90
  • Watt(Approx)
    44.6 W89.2 W
  • Lumens(Approx)
    4944 Lm9888 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%DMX/RDM
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    Damp
  • Mounting Type
    PendantCeiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
