H. E. Williams, Inc.

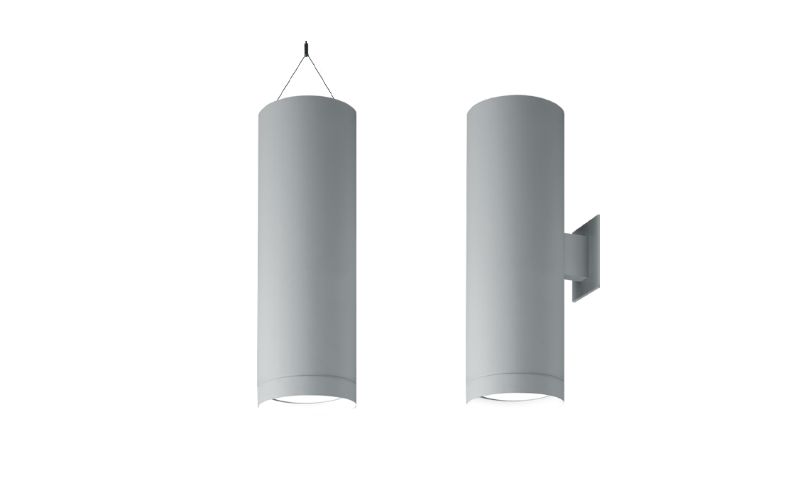

8CRDI-TL. LED 8″ Direct/Indirect Cylinder – Round.
Configure
Add to project
RESOURCES
DESCRIPTION
- High-output illumination for tall ceilings
- Smoothly accent walls and eliminate dark ceilings with direct and indirect lighting
- Parallel the performance and style of the Williams downlight collection
- Superior optical control with beams as narrow as 10° and field changeable optics as wide as 65°
- Complement the architectural elements of any space with a multitude of housing, trim and cord finishes
- Precision-engineered extruded aluminum housing and die-cast aluminum trim face for clean aesthetic
- Variety of cord colors available in standard or braided for custom design
- Open, flush, and regressed lens trim options
- Reflectors create smooth, low-glare radiance
- Innovative TrimLock® reflector retention system ensures trim remains secure
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"L: 8"H: 25 5/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)8.6 W8.7 W13.7 W13.8 W18.9 W19.1 W26.6 W26.9 W36.1 W36.5 W43.4 W43.9 W53.4 W55.3 W54 W55.9 W
- Lumens(Approx)924 Lm1392 Lm1014 Lm1846 Lm1528 Lm2790 Lm2026 Lm3731 Lm4599 Lm3062 Lm4094 Lm5543 Lm6428 Lm5047 Lm6083 Lm7011 Lm
- OpticsDirect/IndirectNarrowFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time8CRDI-TL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
