H. E. Williams, Inc.

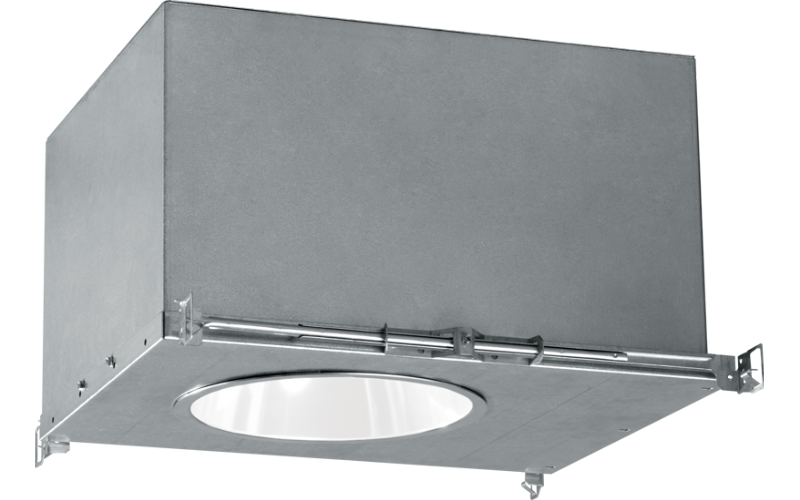

8DR. 8″ Downlight – Round LED | Tunable White.
 Configure
 Add to project
H. E. Williams, Inc.. 8DR. Tunable White 8″ Downlight – Round.
H. E. Williams, Inc.. 8DR. Tunable White 8″ Downlight – Round.
H. E. Williams, Inc.. 8DR. Tunable White 8″ Downlight – Round.
RESOURCES
DESCRIPTION
  • High-output illumination for tall ceiling applications
  • Beam angles ranging from 35º narrow to 65º wide for tailored performance
  • New construction mounting pan, IC-rated, or pan-less remodel kit available
  • Open reflector with nine finishes complement interior style
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • Sloped adapter accommodates vaulted ceilings
  • Fully room-side accessible
  • Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 9.2"
    L: 9.2"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    9.6 W24.1 W33.2 W48.7 W67.9 W
  • Lumens(Approx)
    1113 Lm3222 Lm4271 Lm6378 Lm8528 Lm
  • Optics
    DirectNarrowFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    Integral120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USARoHSBAA
  • Environment
    Antimicrobial FinishDampWet
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New ConstructionICChicago PlenumRemodelAir Tight
  • Housing Depth
    9 ''10 ''9 1/2 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
