H. E. Williams, Inc.

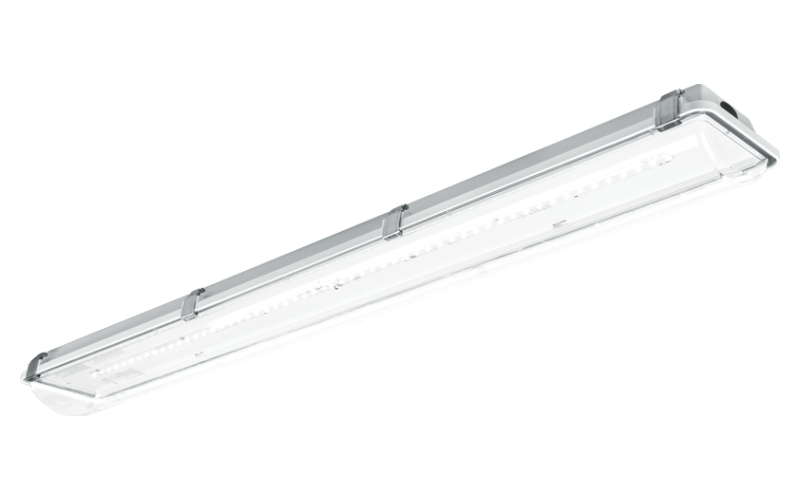

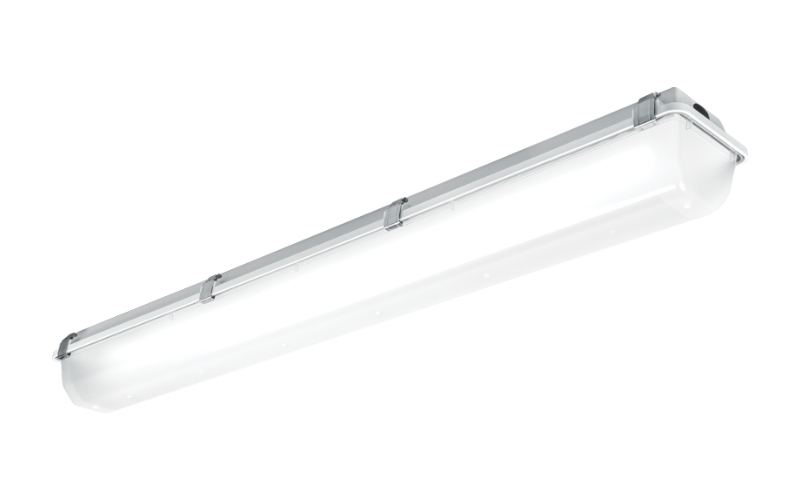

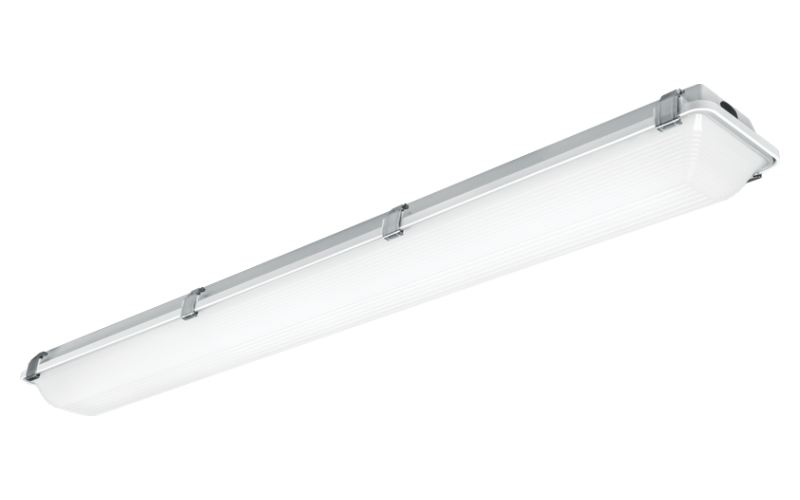

96_QS. LED Fully Enclosed & Gasketed Industrial.
Configure
Add to project
RESOURCES
DESCRIPTION
- Available on QuickShip
- Fully gasketed fixture is built tough to resist contaminants
- Toggle latches ensure a tight seal and provide easy access to electrical components
- Closed-cell polyurethane gasket poured and formed in place to ensure tight seal–does not absorb water or support fungal growth
- Standard stainless steel latches protect the fixture from corrosion in harsh environments
- Tamper-resistant latches available
- High and low ambient options for extreme environments
- NSF/ANSI 2, IP65, IP66 and IP67 certified, rated for NEMA 4X
- Variety of mounting options include surface, suspended, and wall
- High-performance up to 138 lm/W
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 3/8"L: 4 FtH: 4 1/8"
- Light SourceLED
- CCT/Color4000K
- CRI80
- Watt(Approx)48 W
- Lumens(Approx)6434 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USANSFRoHSBAA
- EnvironmentIP67
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
