H. E. Williams, Inc.
AT1. LED/Tunable White Architectural Troffer – Curved Floating Center.
 Configure
 Add to project

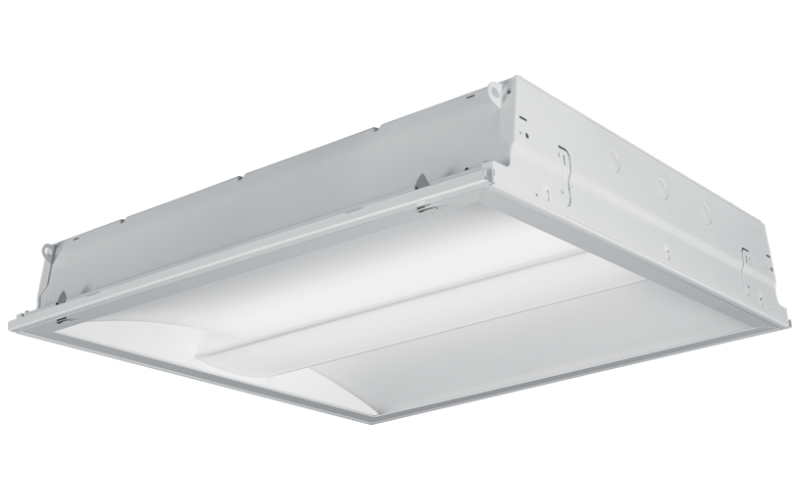

H. E. Williams, Inc.. AT1. Architectural LED Troffer - Curved Floating Center.

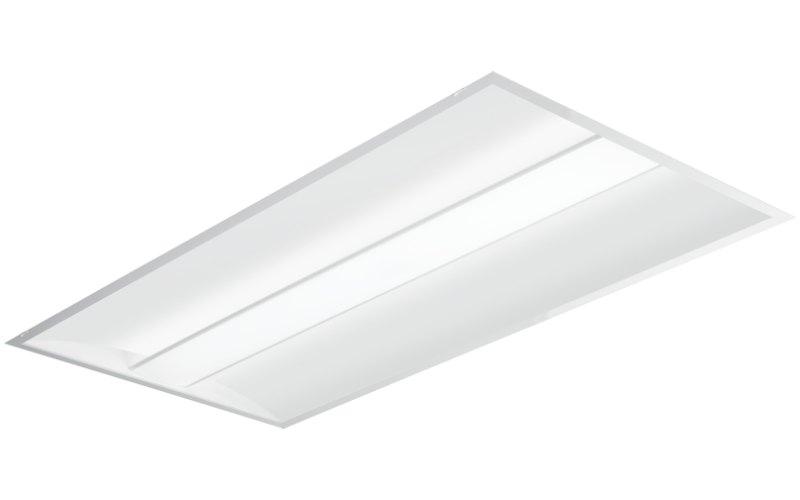

H. E. Williams, Inc.. AT1. Architectural LED Troffer - Curved Floating Center.

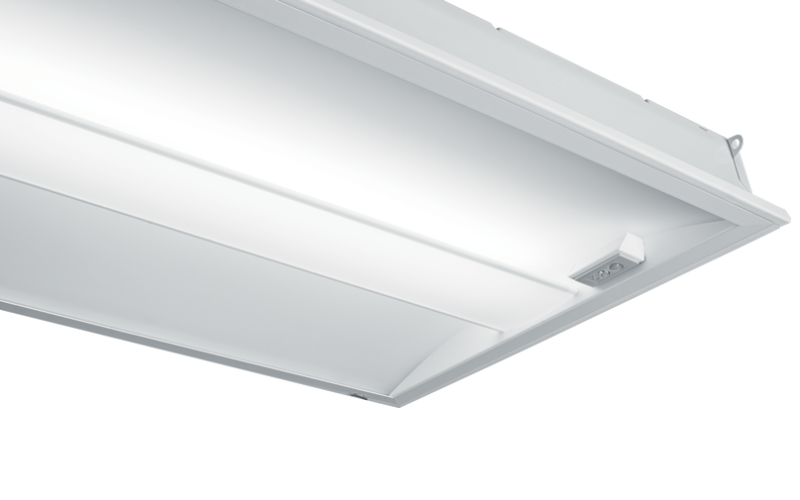

H. E. Williams, Inc.. AT1. Architectural LED Troffer - Curved Floating Center.
H. E. Williams, Inc.. AT1. Architectural LED Troffer - Curved Floating Center.
RESOURCES
DESCRIPTION
  • Backlit curved lens provides uniform illumination for visual comfort
  • Curved floating center detail creates a highly-aesthetic presence
  • Hinged door frame with optical assembly swings down to allow easy access from room-side of fixture
  • Optional gasketed acrylic sani-shield lens helps protect against contaminants
  • HE option delivers superior efficacies up to 152 lm/W
  • Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Diffuse or perforated lens options enhance the space
  • IC-rated for direct contact with insulation
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Create rich, vibrant designs with lasting visual impact using the full visible light spectrum
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    29.5 W37.2 W48.3 W48 W62.4 W63.3 W86.9 W
  • Lumens(Approx)
    3028 Lm4120 Lm5056 Lm6318 Lm5523 Lm7002 Lm10125 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    Antimicrobial FinishDamp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    4 3/8 ''
