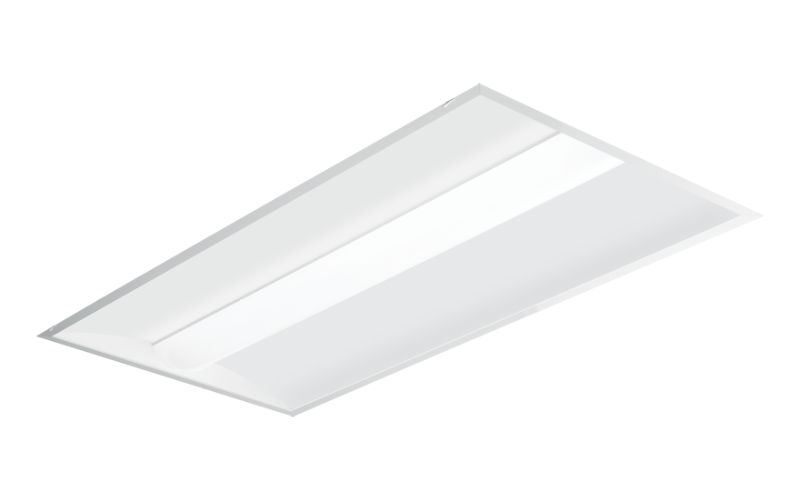

AT2. LED Architectural Troffer – Curved Deep Center.
Configure
Add to project
RESOURCES
DESCRIPTION
- Backlit curved lens provides uniform illumination for visual comfort.
- Distinct curved deep center detail creates a highly-aesthetic presence.
- Available with decorative inserts to customize center lens.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)29.5 W37.2 W48.3 W48 W62.4 W63.3 W86.9 W
- Lumens(Approx)3028 Lm4120 Lm5056 Lm6318 Lm5523 Lm7002 Lm10125 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkLutron®Wireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAMade in USABAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAT2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
