H. E. Williams, Inc.

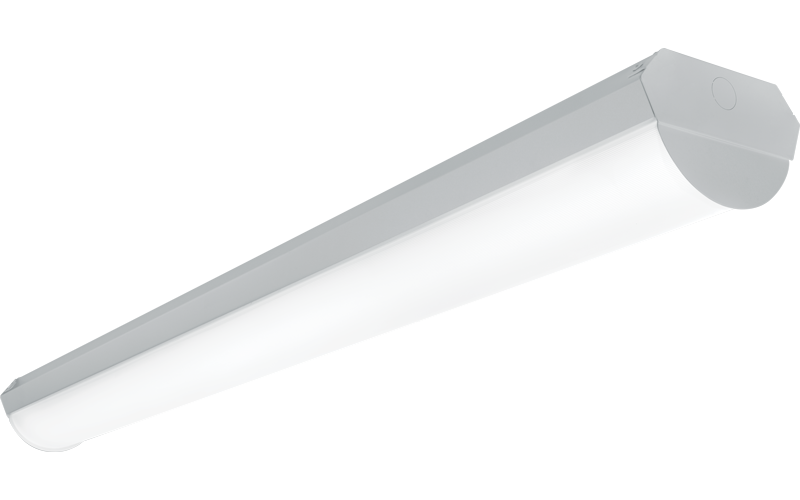

AW. LED Angled Narrow Wrap.
Configure
Add to project
RESOURCES
DESCRIPTION
- Provides uniform downward light distribution and subtle side illumination
- Diffuse acrylic lens enhances uniformity and minimizes glare
- Wireway is accessible without the use of tools
- Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
- Variety of mounting options for surface or suspended applications
- High-performance up to 143 lm/W
- Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 13/16"L: 4 FtH: 3 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)23.5 W38.8 W55.6 W70.1 W
- Lumens(Approx)3389 Lm5423 Lm7445 Lm9289 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkLutron®Wireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V480V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesETLBAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
